Eye connection, nipple thread M16x1 5 eyelet fi18

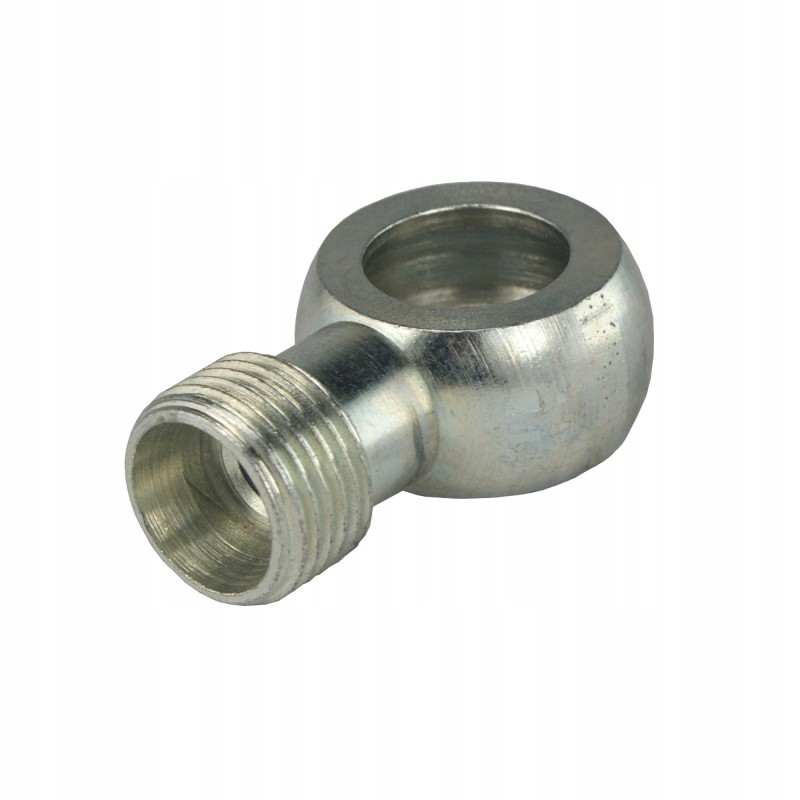

HYDRAULIC CONNECTION WITH EYELET THREAD M16x1.5, EYELET FI 18mm Production:

Original product of the Hydrolider brand, symbol: 1.60.50.018

Application:

It has a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Eye connection, tightened to the body of e.g. pump, cylinder, distributor, etc. using an eye bolt. It connects the main components of the hydraulic system with hydraulic conduits.< p>

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

The eyelet connection leads the hydraulic hose close to the pump or cylinder body. Used where space is limited and a crimped cable with a traditional elbow does not fit.

The eyelet has space for an ED washer or a copper washer, it is recommended to install the washer in two places, under the body and above the body (photo. )

An end on the thread side intended for screwing on a conduit, elbow or other fitting with a conical system. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is not required in this place.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 7mm

Cable side thread: external metric 16x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
