Flat quick connector ffh socket 1 4 internal 1 4 bsp

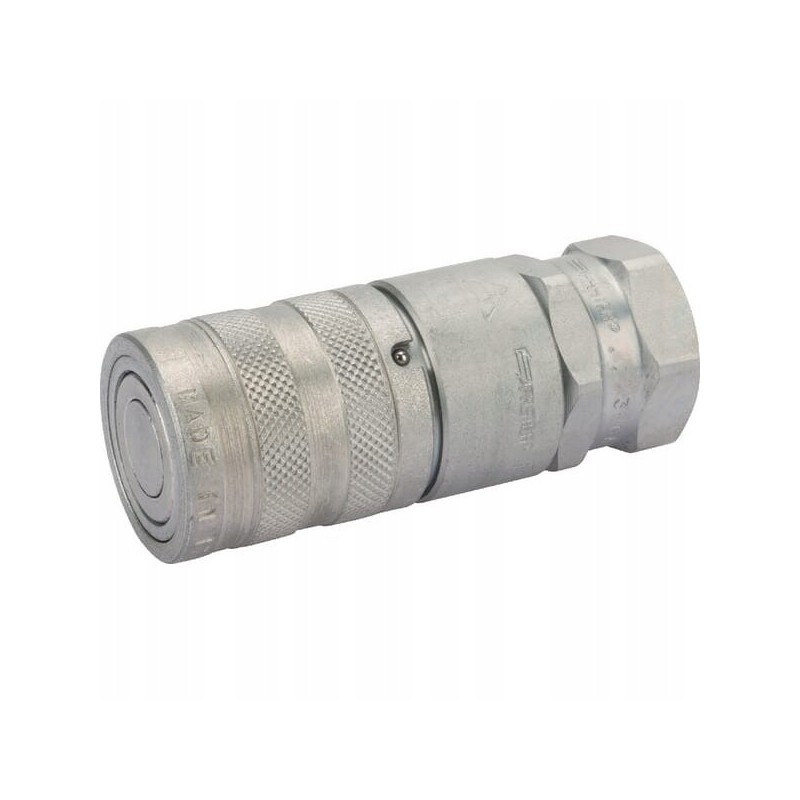

Flat quick connector FFH socket 1/4 internal thread 1/4 BSP INDEX: FFH0414GASF

Material: Carbon steel

Specifications: - One-hand connection - With special flat valve - Protection against accidental disconnection

Benefits: - Easy operation - Minimal leakage rate - Connection without air inclusions

Features: - Highest corrosion resistance - Axial actuation of the locking sleeve reverse (single-sided acting) - With double-sided shut-off - Induction hardening in places exposed to rapid wear - Cannot be connected under pressure

Valve type: Flat

Shape: Straight - 2 sides of connection

Application: - Can be used in ecologically sensitive areas - Tools hydraulic - Construction and agricultural machinery - Ship construction - Mineral oil-based fluids

Size: 6.3 mm

Outer diameter: 27 mm

ISO standard: 16028

Series: FFH

Connector thread diameter: 1/4 inch

Connection diameter: 27 mm

Machining surface: Zinc

Nickel-plated

Connector thread type: BSP

Total length: 59mm

Seal material: Nitrile rubber [NBR]

Weight: 175.1g

Working pressure: 350BAR

Connector type no. 2 - male/female: Female

Possibility to connect under pressure: No

Max operating temperature: 100°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Disconnection method: Sleeve displacement

Connector type no. 2: Thread

Thread diameter of connection no. 2: 1/4 inch

Size (code): BG 1

Thread type of connection no. 2: BSPP

Number of turns per inch of thread of connection no. 2: 19

Flow at 2 bar pressure: 25 l/min

Connection type No. 1: Quick Connector

Connector Type No. 1 - Male/Female: Female

Key Size for Connector No. 1: 24mm

Key Size for Connector No. 1: 24 mm
