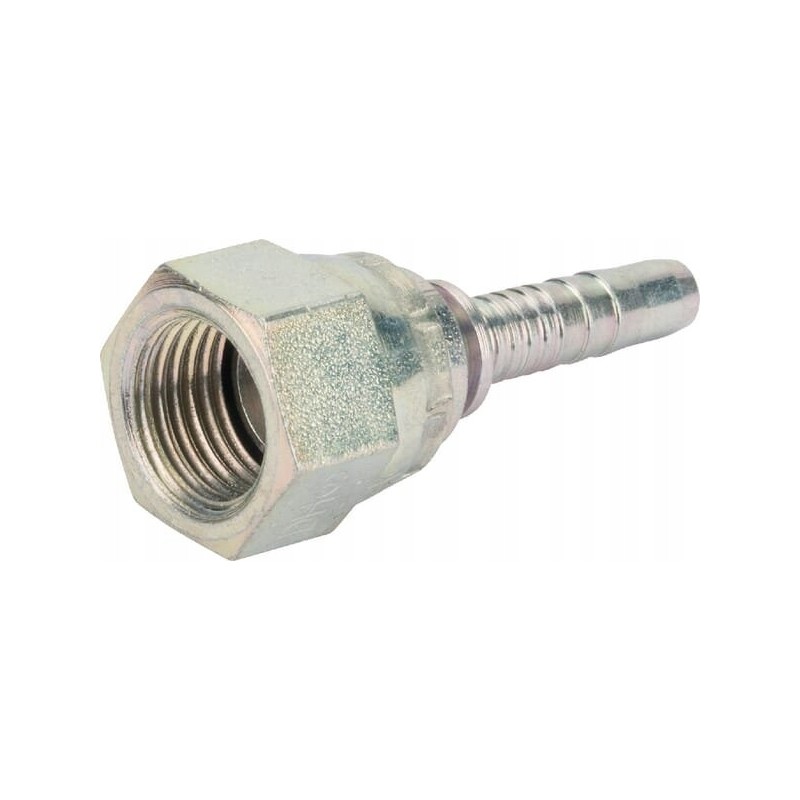

End dn06 9 16 unf

Tip DN06-9/16 UNF Parameters

Part number: PA69

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106787821< p>

Cone angle: 37 °

Shape: Straight - 2 sides of connection

Connection type no. 1: Thread

Connection type no. 1 - male/female: Female

Connector type no. 1 - code: DKJ

Connector no. 1 length: 15.3 mm

Connector thread diameter: 9/16 inch

Connector Thread Type: UNF

Connector No. 1 Wrench Size: 19.0 mm

Connector No. 2 Type: Hose Adapter

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 1/4 inch

Material: Steel

Connection: JIC Union Nut ( UNF thread) with internal cone 74°

Type: DKJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
