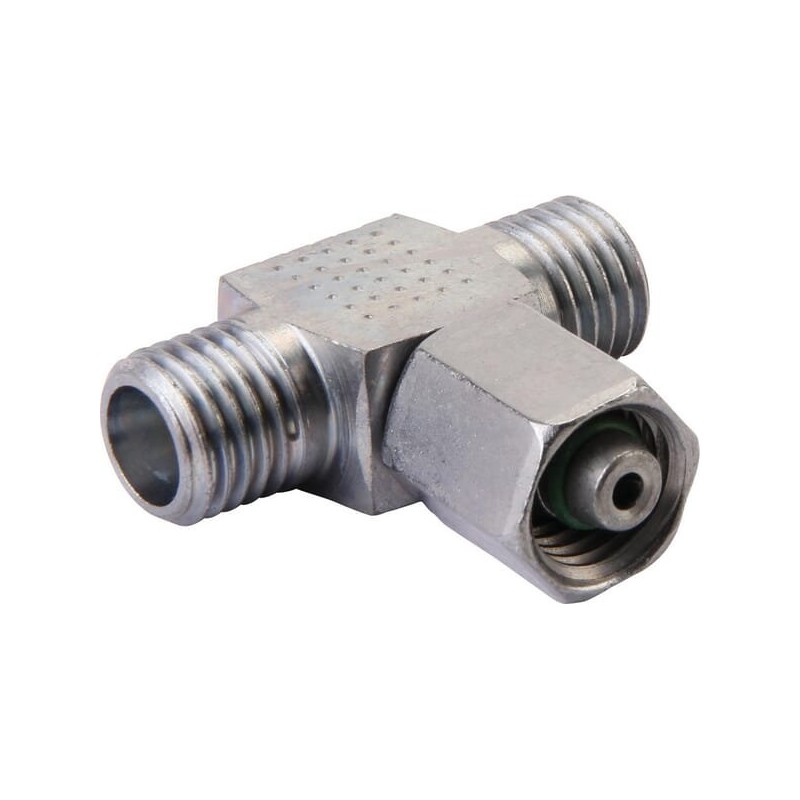

T-connector with symmetrical nut m12x1 5 6

Symmetrical tee connector with nut M12x1.5 6L Parameters

Part number: ETSD6L

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M12

Connector No. 1 Thread Pitch: 1.5mm

Connector Thread Type: Metric

Connector [S2] Wrench Size: 14mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector Thread Diameter No. 2: M12

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 12 mm

Connector No. 3 Type: Swivel Nut

Connector No. 3 Type - Male/Female : Female

Coupling No.3 Length: 34.5

Coupling No.3 Thread Diameter: M12

Coupling No.3 Thread Pitch: 1.5mm

Coupling No.3 Thread Type: Metric

Pipe Diameter: 6mm

Length: 38mm

Body height [S1]: 12 mm

Max. working pressure: 500 BAR

Internal diameter. sealing ring: 4.5 mm

Sealing washer thickness: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L1]

27mm

Dimension from the axis of joint no. 2 to the end of the next joint [L2]

26mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

12mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 4.33 mm

- 2.5 mm

Surface treatment

- Zinc

- Nickel plated
