Ewsd10l elbow connector with nut m16x1 5 10l

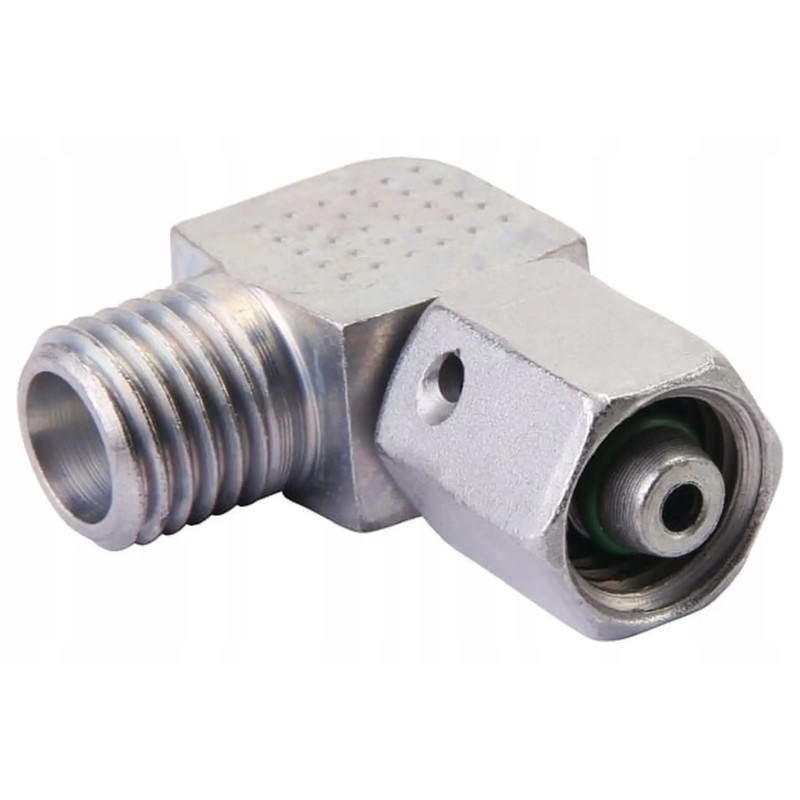

EWSD10L Elbow connector with nut M16x1.5 10L PRODUCT DESCRIPTION:

Elbow connector with nut M16x1.5 10L

Connection thread diameter no. 2: M16

Connector type No. 2: Cutting ring

DIN standard: 2401

Connection thread type no. 1: Metric

EAN: 8716106786206

Connector thread diameter No. 1: M16

Application: Hydraulic hose Hydraulic lines

Diameter of connection No. 1: 10 mm

Wrench size for connector No. 1: 14 mm

Specifications: Pre-assembled O-ring For direct connection to metric hose nut or pre-assembled coupling

Technical information: Stainless steel version available on request Viton gasket available on request

Pipe diameter: 10 mm

Part number: EWSD10L

Connector type no. 1: Swivel nut

Max. working pressure: 500 BAR

Type of Connector No. 1 - Male/Female: Female

Thread Pitch of Connector No. 2: 1.5mm

Series: 10L

Thread Pitch of Connector No. 1: 1.5 mm

Shape: Elbow - 2 sides of connection

Angle: 90 °

Wrench size for connector no. 2: 19 mm

Connection thread type no. 2: Metric

Dimension from the axis of the connector to the end of the next connector: 30 mm

Properties: High corrosion resistance

Benefits : Low risk of leakage

Tube side seal material: Viton

Length: 15 mm

Connector type no. 2 - male/female: Male

Part catalog number: EWSD10L

Category: Hydraulics Hydraulic connectors-sockets

Part manufacturer: Voss

Substitutes:

Brand : Other

Matches machine:
