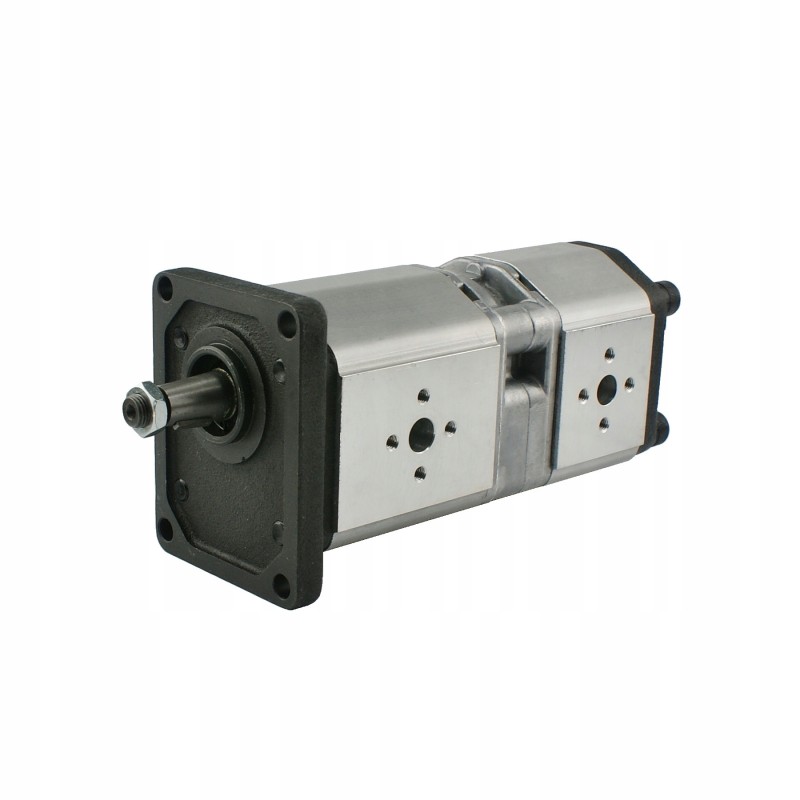

Gear pump, 2-section, left, 26, 10 cm3, hydrolider

2-SECTION GEAR HYDRAULIC PUMP26/10cm3/rpm, 39/15 l/min, LEFTProduction:

Original product of the Hydrolider brand, symbol: 1.40.11.263

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Versatile use, in small and medium-sized mobile systems, powerpacks, power supplies, aggregates, in hydraulic systems according to original designs and others.

Recommendations for use:

The manufacturer allows you to freely set the pressure on both systems that power individual sections of the pump. The user must remember to set the overflow valves on both sections so that the power demand of the second pump (the one at the rear) is lower than the power demand of the first pump. The safest way is to set the same pressure on both pumps, the risk of incorrect setting occurs when the set pressure on the second pump is much higher than that on the first pump. More information about power requirements and pressure settings can be obtained from your consultant.

Technical data, first section:

performance: 39 l/min (at 1500 rpm)

geometric volume: 26 cm3/rev

rotation direction: left

speed range: 500 - 3000 (rpm)

pressure in continuous operation: 250 bar

temporary operation pressure: 300 bar

Technical data second section:

capacity: 15 l/min (at 1500 rpm)

geometric volume: 10 cm3/rev

rotation direction: left

speed range: 500 - 3000 (rpm)

pressure in continuous operation: 250 bar

temporary operation pressure: 300 bar
