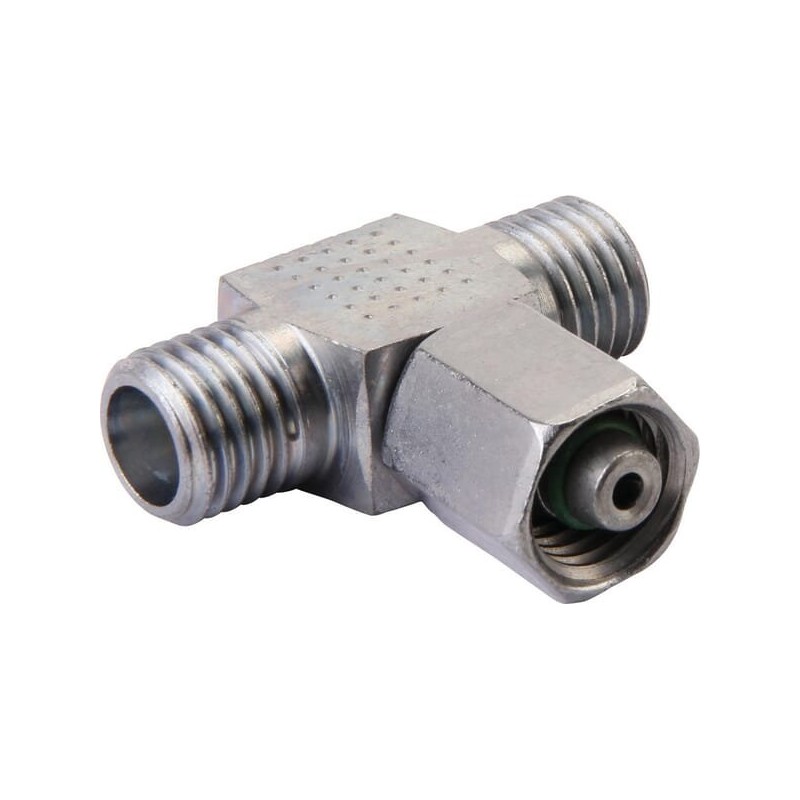

T-connector with symmetrical nut m24x1 5 1

Symmetrical tee connector with nut M24x1.5 16S Parameters

Part number: ETSD16S

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M24

Connector No. 1 Thread Pitch: 1.5mm

Connector Thread Type: Metric

Connector [S2] Wrench Size: 30mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector Thread Diameter No. 2: M24

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 24 mm

Connector No. 3 Type: Swivel Nut

Connector No. 3 Type - Male/Female : Female

Connector No. 3 Length: 55

Connector No. 3 Thread Diameter: M24

Connector No. 3 Thread Pitch: 1.5 mm

Connector No. 3 Thread Type: Metric

Pipe Diameter: 16 mm

Length: 66 mm

Body Height [S1]: 24 mm

Working pressure max.: 630 BAR

Internal diameter. sealing ring: 14 mm

Sealing washer thickness: 2 mm

Seal material: Nitrile rubber [NBR]

Series: S

Specifications

- Pre-assembled O-ring - For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L1]

43mm

Dimension from the axis of joint no. 2 to the end of the next joint [L2]

36.5mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

24.5mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 12.22 mm

- 11 mm

Surface treatment

- Zinc

- Nickel plated
