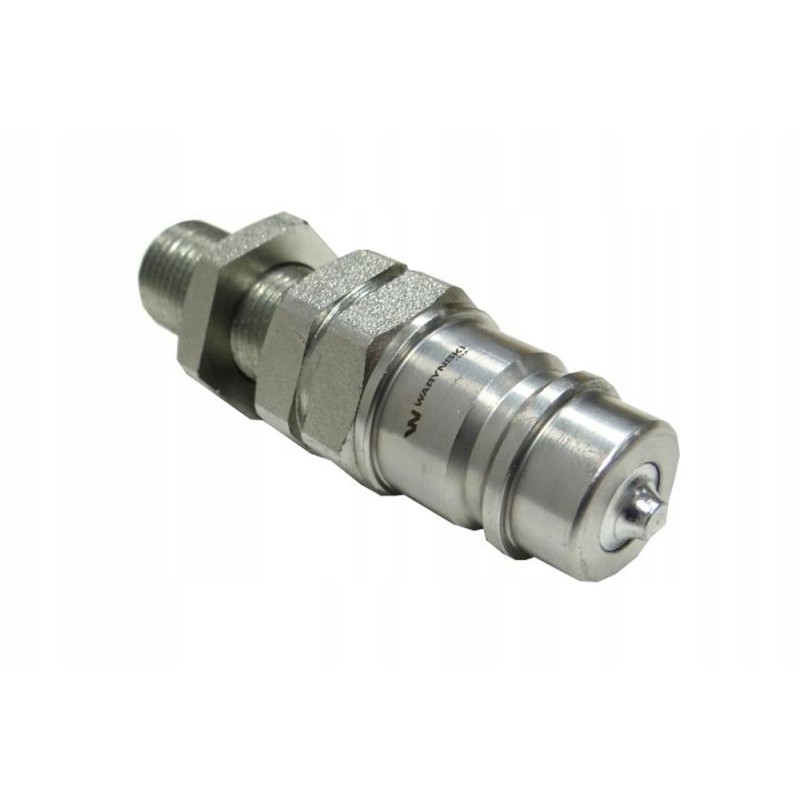

HYDRAULIC QUICK CONNECTOR LONG PLUG M18X1.5 EXTERNAL THREAD EURO (9100818W) (ISO 7241-A) WARYŃSKI
Hydraulic quick coupler Waryński - EURO plug (long). The most popular hydraulic quick couplings with a very wide range of applications. The quick couplings are designed
in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies
characteristics and dimensions in detail to enable compatibility of quick couplings
manufactured by various manufacturers in accordance with this standard. Interchangeable
with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP,
Tema and others.
Specification:
Operating temperature - from -25°C to +120°C
Thread - External M18x1.5
(long with locknut)
Max. pressure operation - 25 Mpa / 250 bar
Standard - (EURO), ISO-7241-A (ISO-A)
Type - Plug
Cone - thread - 12L (12mm)
Fits plugs - WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP, WIAM 18MZL- PP, WIAM22MZ-PP, WIAM22MZL-PP, WIAM20MZ-PP, 9100822G, 9100822GL, 9100818G, 9100818GL, 9100816GL, 9100814G, 9100816G, 9100820G
Fits the cover - RM-WTYK12Z
Group - Quick connectors
No. catalog number: WIAM18SZL
Application:
Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.
Producer: Waryński
