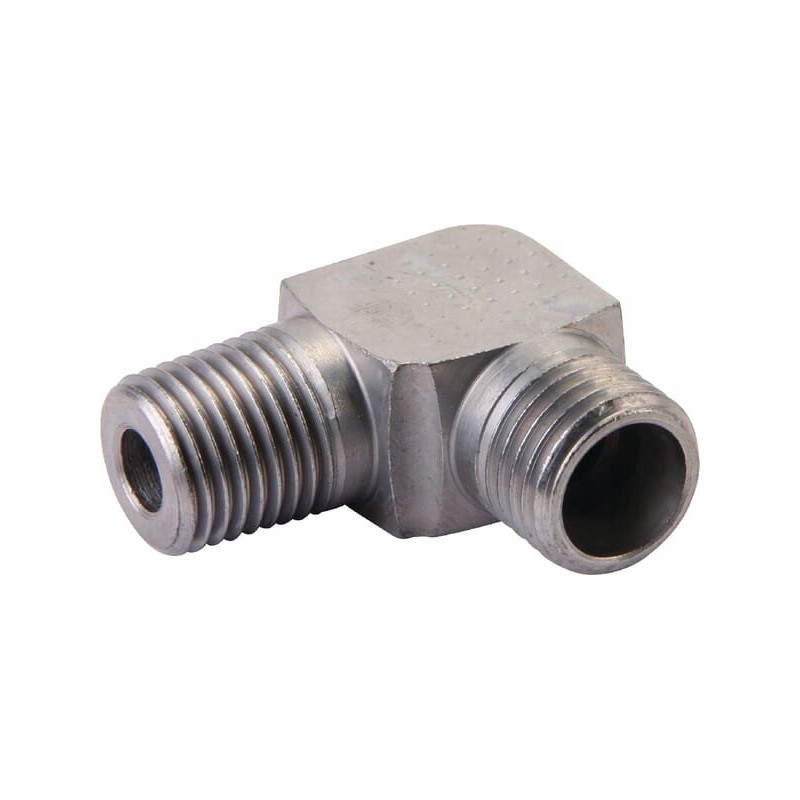

Angle connector external thread NPT WES, 12L M18x1.5 1/2' Parameters

Part Number: WES12L12NPT

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Side Connection

Connector Thread Diameter: 1/2 inch

Connector Thread Length: 19.8 mm

Connector Thread Type: NPT

Wrench Size for Connector No. 1: 22.0 mm

Connector No. 2 Male/Female Type: Female

Connector No. 2 Thread Diameter: 12 mm

Connector No. 2 Thread Diameter: M18

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Size wrench for connector no. 2: 24.0 mm

Pipe diameter: 12 mm

ISO standard: 228

Body height: 24 mm

Angle: 90 °

Surface treatment: Galvanized

Max. working pressure: 315 BAR

Series: L

Tightening torque max.: 110 N·m

Dimension from the axis of the joint to the end of the next joint 21mm

Dimension from the axis of joint no. 2 to the end of the next joint 33mm

DIN standard

- 2353

- 228

- 3852

- 2401

Internal diameter

- 12 mm

- 9 mm
