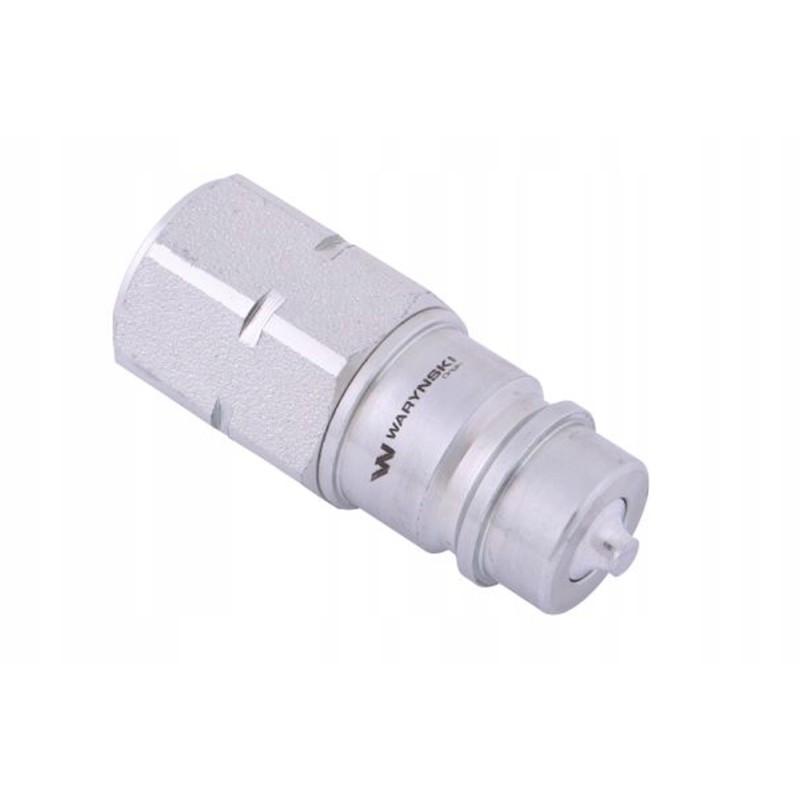

Hydraulic quick connector, plug M18x1 5, internal Euro
  • Hydraulic quick connector, plug M18x1 5, internal Euro
  • Hydraulic quick connector, plug M18x1 5, internal Euro

Hydraulic quick connector, plug M18x1 5, internal Euro

15010915308526
Waryński
£17.80
Quantity
5 Items

Description
HYDRAULIC QUICK CONNECTOR PLUG M18X1.5 EURO INTERNAL THREAD (ISO 7241-A) WARYŃSKIHydraulic quick connector Waryński - EURO plug. The most popular hydraulic quick couplings with a very wide range of applications. Quick couplings designed

are in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard,

which details the characteristics and dimensions to enable compatibility

quick couplings manufactured by various manufacturers in accordance with this standard.

Interchangeable with ISO-A quick connectors from other manufacturers such as:

Parker, Faster, Stucchi, DNP, Tema and others.

Specification:

Operating temperature - from -25°C to +120°C

Thread - Internal M18x1.5

Max working pressure - 25 Mpa / 250 bar

Standard - (EURO), ISO-7241-A (ISO-A)

Type - Plug

Cone - thread - 12L (12mm)

Fits plugs - WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP , WIAM18MZL -PP,

WIAM22MZ-PP, WIAM22MZL-PP, WIAM20MZ-PP, 9100822G, 9100822GL, 9100818G, 9100818GL,

9100816GL, 9100814G, 9100816G, 910082 0G, WIAM18MW-WW, WIAM22MW -PP, WIAR12MW-PP

Fits the cover - RM-WTYK12Z

Group - Quick connectors

No. catalog: WIAM18SW

Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.

Manufacturer: Waryński

WIAM18SW

Product Details
Waryński
15010915308526
WIAM18SW
5 Items
New

Data sheet

Manufacturer
Waryński
Part Number
WIAM18SW
Original part number
WIAM18SW
