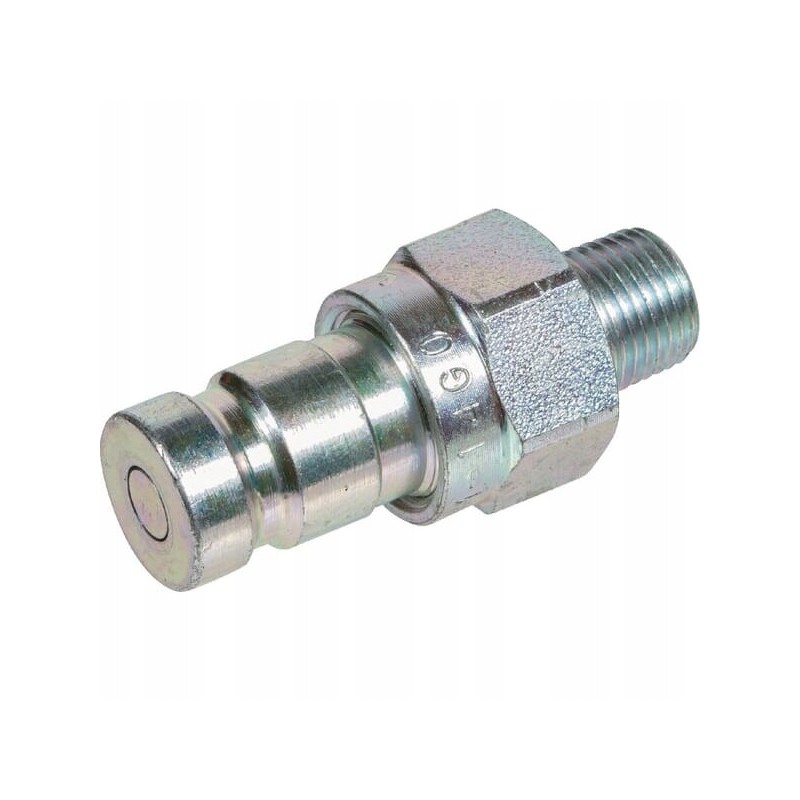

Diagnostic quick connector df plug 1 4 gw 1 8

Length: 41 mm

Material: Steel

Valve type: Flat

Size: 6.3 mm

Outer diameter: 19 mm

ISO standard: 15171-1

Connection diameter: 0.49 inch

Surface treatment: Chrome plated

Connector thread type : NPTF

Total length: 40.9 mm

Wrench size: 0.67 inch

Seal material: Nitrile rubber [NBR]

Thread diameter: 12.55 mm

Note: To disconnect, slide the locking sleeve of the coupler back.

Weight: 35.9 g

Working pressure: 420 bar

Connector type - male/female: Male

Thread type - code: 01

Connector type no. 2 - male/female: Male

Possibility of connecting under pressure: No

Operating temperature max : 125 °C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Connection diameter no. 2: 12.7 mm

ANSI standard: B1.20.3

Disconnection method: Sleeve offset

Flow at 2 bar pressure: 2 l/min

Protective cap. from dust: TFDF 04
