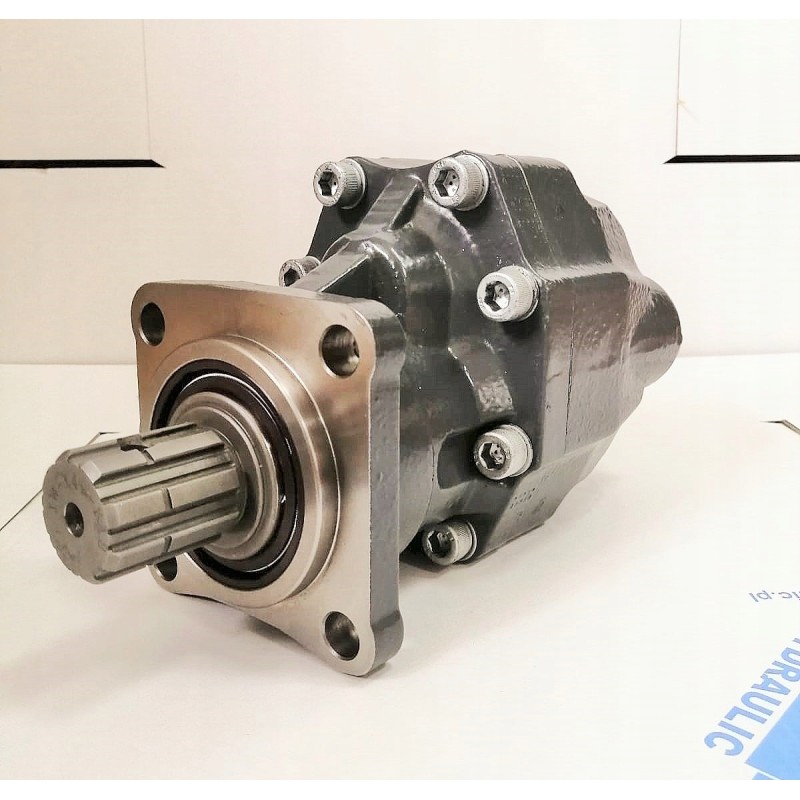

Hydraulic gear pump 45l for HDS Kipra tipper

Gear pump 4H - 45L-BID Technical data capacity per revolution - 45 cm³

Max. continuous pressure - 175 bar

Max. intermittent pressure - 195 bar

Max. peak pressure - 205 bar

weight - 11 kg

This pump is recommended for all PTO attachments. Standard blue hydraulic pumps are used with two seals. One is NBR seal which can reach 80°C and the other is VITON seal which can reach 220°C. For other working conditions, please contact our technical sales department. For extended service life or higher load applications, 25 μm absolute filtration on the return line is recommended. Oil cleanliness must be maintained in accordance with ISO 4406 class 19/16. Salt spray test conducted in accordance with ASTM B117 standard for a minimum of 300 hours.
