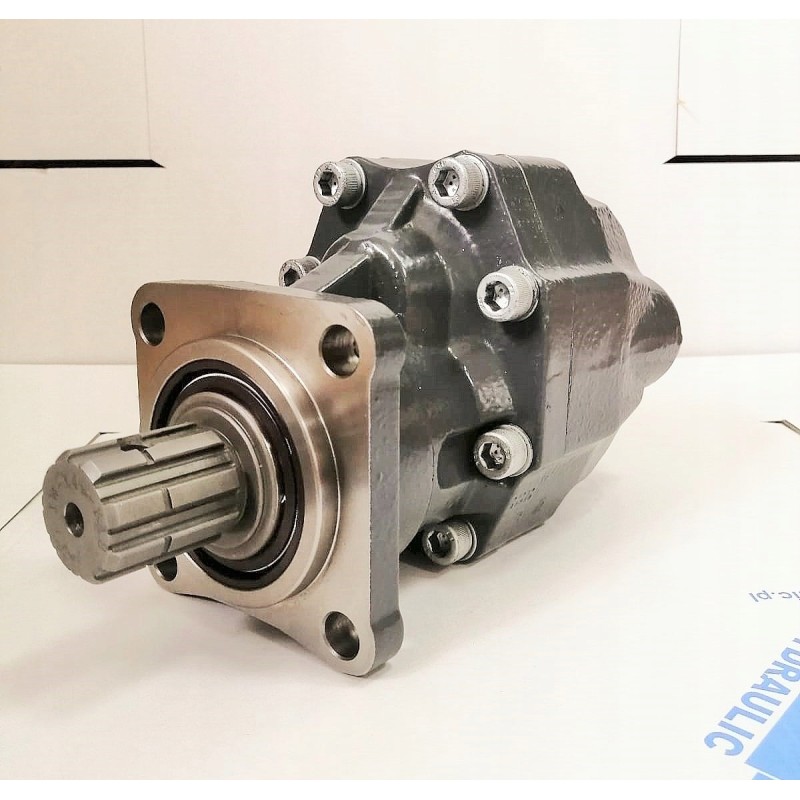

Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer
  • Hydraulic gear pump 55l for tipping semi-trailer

Hydraulic gear pump 55l for tipping semi-trailer

15010821222238
£329.56
Quantity
5 Items

Description
Gear pump 4H - 55L-BID Technical data capacity per revolution - 55 cm³

Max. continuous pressure - 220 bar

Max. intermittent pressure - 240 bar

Max. peak pressure - 250 bar

weight - 10 kg

This pump is recommended for all PTO attachments. Standard blue hydraulic pumps are used with two seals. One is NBR seal which can reach 80°C and the other is VITON seal which can reach 220°C. For other working conditions, please contact our technical sales department. For extended service life or higher load applications, 25 μm absolute filtration on the return line is recommended. Oil cleanliness must be maintained in accordance with ISO 4406 class 19/16. Salt spray test conducted in accordance with ASTM B117 standard for a minimum of 300 hours.

Product Details
15010821222238
BLGP4H55BIRP
5 Items
New

Data sheet

Manufacturer
Blue Hydraulic
Part Number
BLGP4H55BIRP
Product weight with unit packaging
10 kg
