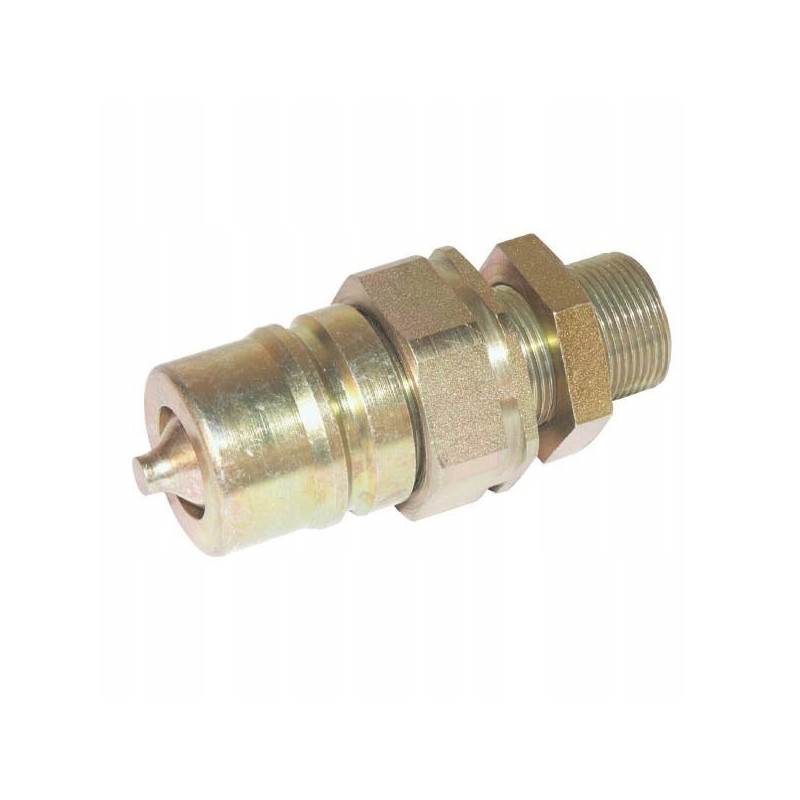

Skpm12n22 quick connector panel iso 12 5 m22x1 5

Quick connector panel ISO 12.5 M22 x 1.5 - plug INDEX: SKPM12N22

Features: - Standard agricultural connector - Push to connecta

Shape: Straight - 2 sides of the connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil-based fluids

ISO standard: 7241-1-A

Connection: dB

Connection diameter: 20.6mm

Surface treatment: White passivated

Total length: 86 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Working pressure: 250BAR

Connector type no. 2 - male/female: Male

Possibility connections under pressure: No

Operating temperature max: 100°C

Operating temperature min: -30°C

Diameter of connection no. 2: 15 mm

Thread pitch of connector no. 2: 1.5 mm

Type of connector no. No. 2: M22

Size (code): BG 3

Connection thread type No. 2: Metric

Connector type No. 1: Quick connector

Connector type No. 1 - male/female: Male
