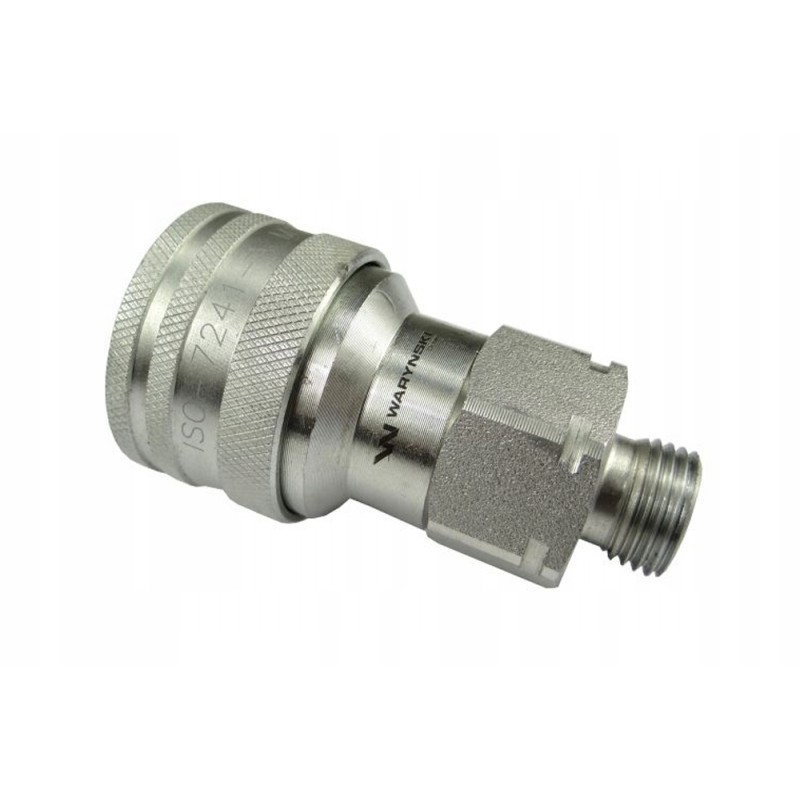

Hydraulic quick connector Euro socket M16x1 5 external

HYDRAULIC QUICK COUPLING SOCKET M16X1.5 EXTERNAL THREAD EURO (9100816G) (ISO 7241-A) WARYŃSKIQUICK CONNECTOR HYDRAULIC SOCKET M16X1.5 EXTERNAL THREAD EURO (9100816G) (ISO 7241-A) W ARYŃSKI Waryński hydraulic quick coupler - EURO socket. The most popular hydraulic quick connectors with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: External M22x1.5 (long with locknut)

*Standard: (EURO), ISO-7241-A (ISO-A)

*Type: Plug with pressure eliminator

*Cone - thread: 15L (15m)

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits sockets: WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP, WIAM18MZL-PP, WIAM22MZ -PP, WIAM22MZL-PP, WIAM20MZ -PP, 9100822G, 9100822GL, 9100818G, 9100818GL, 9100816GL, 9100814G, 9100816G, 9100820G, WIAM18MW-PPE, WIAM18MZL-PPE, WIAM18MZ-PPE, WIAM20MZ-P PE, WIAM22MW-PPE, WIAM22MZL-PPE, WIAM22MZ-PPE, WIAR12MW-PPE

*Fits cover: RM-WTYK12Z

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.

* Producer: Waryński
