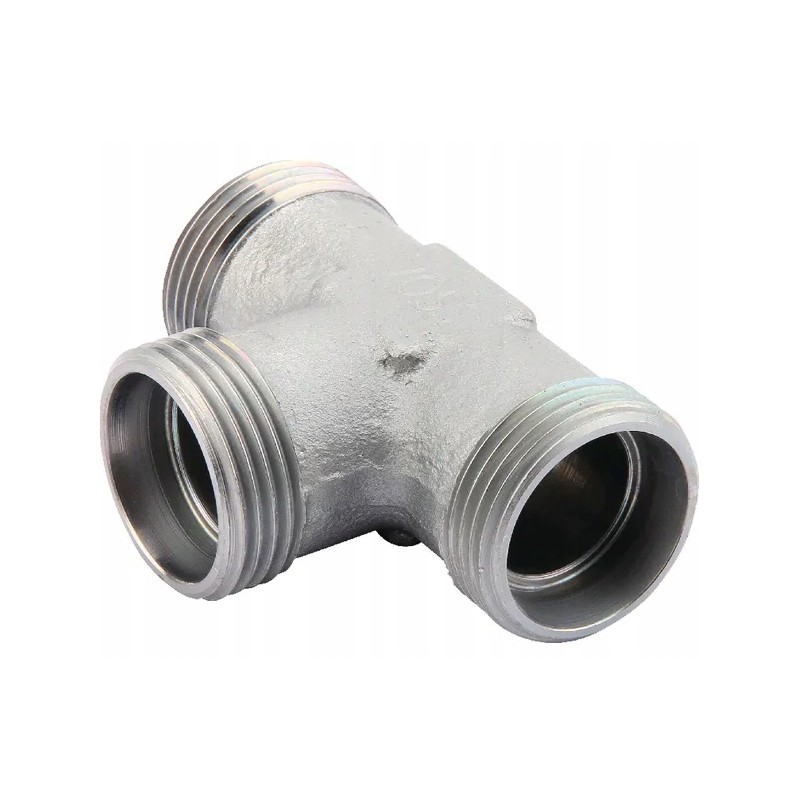

TS10L Tee connector M16x1.5 10LEAN

8719607079143

Advantages

Limited risk of leakage

Product details

To direct connection to metric hose nut or pre-assembled connector

High corrosion resistance

Hydraulic hoses

Hydraulic pipes

Shape

Tee (T) - 3 connections

Connector type no. 1

Thread

Connector type no. 1 - male/female

Male

Connection Diameter

10 mm

Connection No. 1 Thread Diameter

M16

Thread Pitch connector no. 1

1.50 mm

Connector thread type

Metric

Wrench size for connector no. 1

19.0 mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Male

Diameter of connection no. 2

10 mm

Length of connection no. 2

15 mm

Thread diameter of connection no. 2

M16

Connection no. 2 thread pitch

1.50 mm

Connection no. 2 thread type

Metric

Wrench size for connector no. 2

19.0 mm

Connector type no. 3

Thread

Connector type no. 3 - male/ female

Male

Connection no. 3 diameter

10 mm

Connector no. 3 thread diameter

M16< p>

Connector No. 3 thread pitch

1.50 mm

Connector No. 3 thread type

Metric

Dimension from centerline connector to the end of the next connector

15 mm

22 mm

Pipe diameter

10 mm

DIN standard

2353

2401

Inner diameter

8 mm

Total length

44 mm

Body height

17 mm

Surface treatment

Zinc

Nickel-plated

Max working pressure

500 BAR

Series

L
