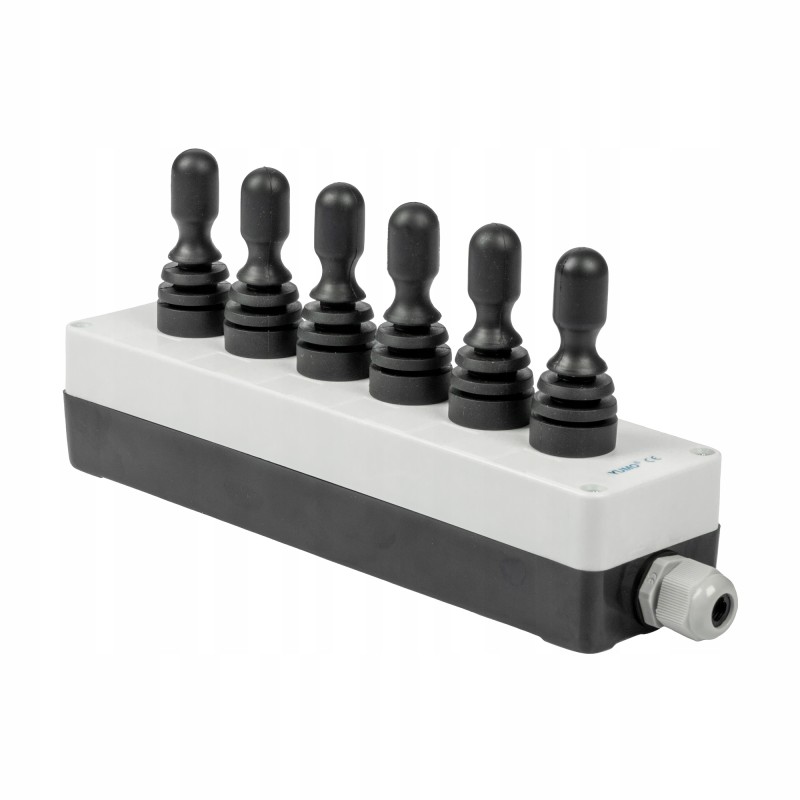

Control panel 6x joystick 1 10 61 061 hydrolider

HOUSING WITH 6 3-POSITION ELECTRIC JOYSTICKS WITH SPRING POSITIONINGProduction:

Original product of the Hydrolider brand, symbol: 1.10.61.061

Application:

Housing with six manipulators with 3 levers -position, allows you to control six sections in an electrically controlled hydraulic distributor 12V and 24V. It is widely used in electrical control of hydraulic systems in agriculture, construction and industry.

Joystick technical data:

Each joystick has 2 unstable positions (working) and one stable position (neutral center position) . Monostable design where the joystick lever returns itself to the central - neutral position.

They have a rubber sealing cover that protects against dust, water and is resistant to oil.

Lever material: Steel

Lever cover material: Rubber

Each joystick operation: Monostable (spring-based)

Number of working positions: 2

Contact sets: 2 x NO< p>

AC contact load capacity: 10A / 500V (with resistive load)

Min. insulation resistance: 100MΩ

Test voltage: 2.2kV

Mechanical durability: ≥ 500,000 cycles

Electrical durability: ≥ 50,000 cycles

Operating temperature: -25°C to +55°C

Certificates: CE< p>

Housing technical data:

Housing dimensions (mm): length 280, width 72, height 65

Mounting dimensions (mm): 54 x 244

Housing material: Plastic

Housing color: white and black

Number of holes: 6

Hole diameter: Ø 22

Additional accessories: PG13.5 gland

Operating temperature: from -25 to 55°C

Tightness class: IP54

Certificates: CE< p>
