Pglo61290 tip dn06 m12x1 5 6l 90

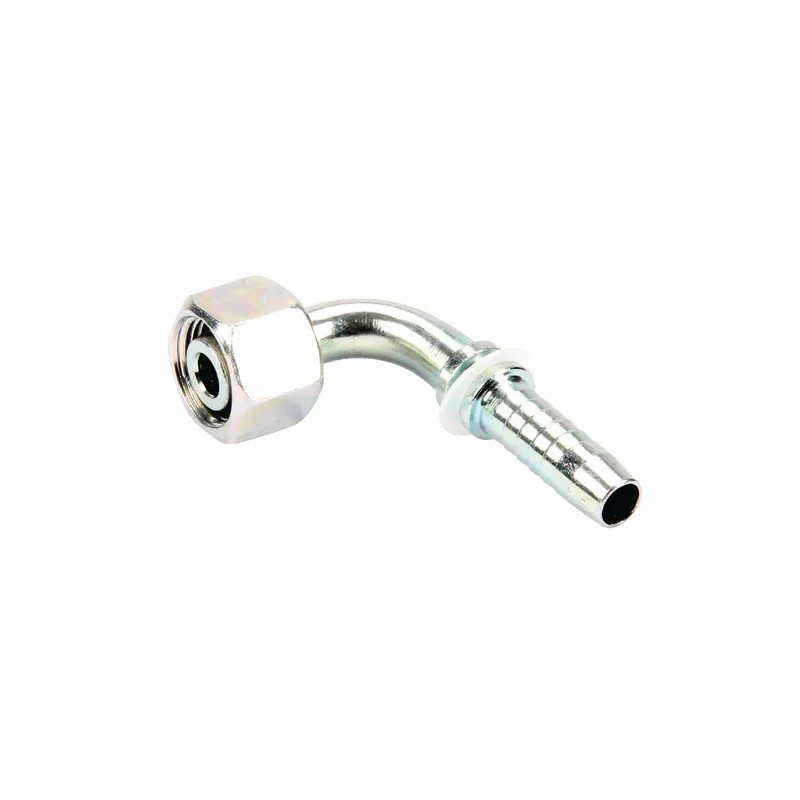

PGLO61290 End cap DN06-M12x1.5-6L-90° Product details

Cone, conical seal with O-ring

L series cut-off ring connection

Includes

Tips

O-ring

Cone angle

24°

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Type of connector no. 1 - code

DKOL

Thread diameter of connector no. 1

M12

Pitch thread of connector no. 1

1.50 mm

Wrench size for connector no. 1

14.0 mm

Type of connector no. 2

Hose connector

Connector type no. 2 - male/female

Male

Diameter of connection no. 2

1/4 inch

Diameter of connection no. 2

6 mm

Dimension from the axis of the connector to the bottom of the next connector

26 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

Series

6L

OE reference number

H1221591-041200

Connection< p>

xx

Type

DKOL
