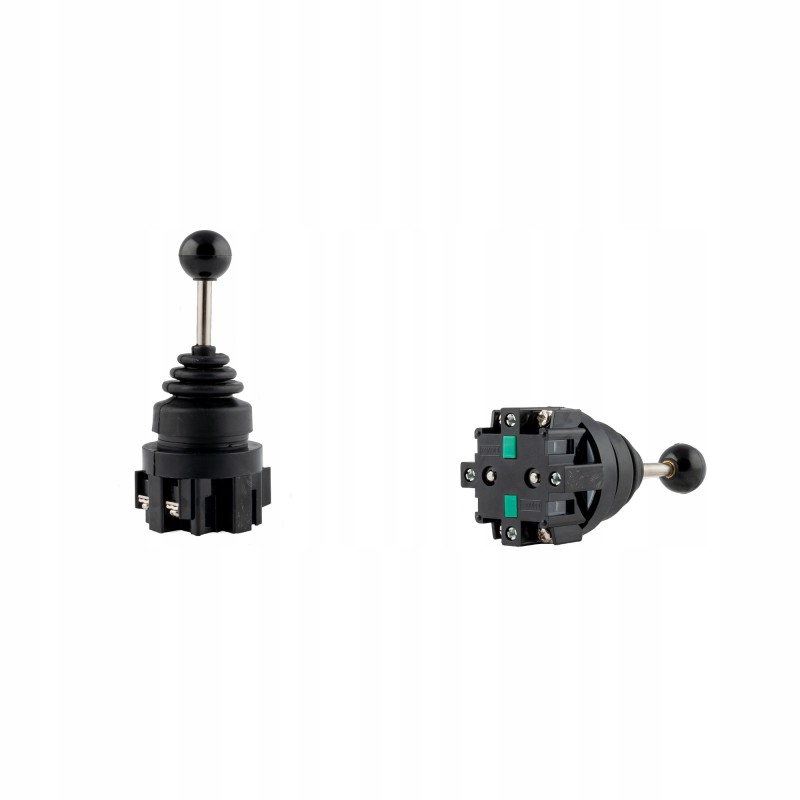

3-pos. monostab electrical distributor controller

JOYSTICK ELECTRIC MANIPULATOR, THREE-POSITION, MONOSTABLE Production:

Original product of the Hydrolider brand, manufacturer's symbol: 1.10.61.000

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Lever manipulator, enables control of two sections in an electrically controlled 12V hydraulic distributor and 24V

Technical data:

Dimensions: 51 x 55 x 126 mm Lever material: Steel Operating method: Monostable (without latch) Number of working positions: 2 Contact sets: 2 x NO Load capacity of AC contacts: 6A / 250V (with resistive load) Load capacity DC contacts: 2.2A / 110V (with resistive load) Min. insulation resistance: 100MΩ Test voltage: 2.2kV Mechanical durability: 5*1050 cycles Electrical durability: 5*1050 cycles Operating temperature: -20....50° C

General information:

It has 2 unstable positions and one stable, neutral middle position.

If the controller releases the joystick, it returns to the middle - neutral position.

Designed for installation in a Ø 30 mm hole . Installation is done by unscrewing the lever ball, unscrewing the ring with cover, inserting the joystick through the hole and re-screwing the ring and ball. It has a rubber sealing cover that protects against dust, water and is resistant to oil.

Three-position joystick, example operation with a 1-section distributor:

Position 1 neutral (lever vertical), cylinder piston rods are standing - oil goes to the overflow.

Working position 2 (lever in forward position) ) the piston rod of the first cylinder extends.

Working position 3 (lever in the rear position) the piston rod of the first cylinder retracts.
