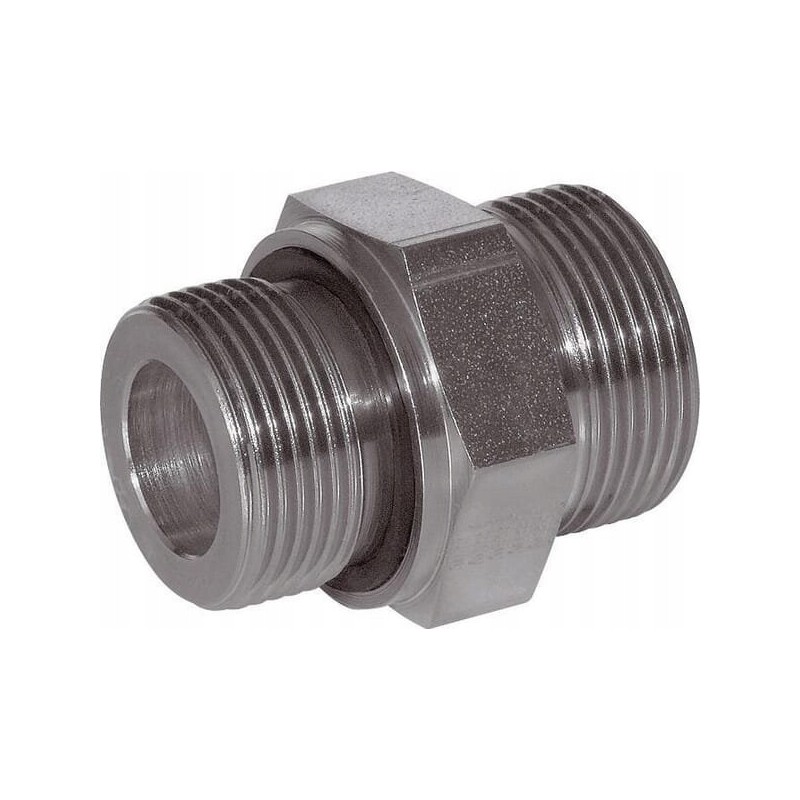

Straight connection with seals 1 4 bsp m12x1 5 6l

Straight connection with gasket 1/4' BSP - M12x1.5 6L Parameters

Part number: GES6LR14WD

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter : 6 mm

Connector No. 1 thread diameter: M12

Connector thread length: 12 mm

Connector No. 1 thread pitch: 1.50 mm

Connector Thread Type: BSP

Connector No. 1 Wrench Size: 18.9mm

Connector No. 1 Wrench Size: 19.0mm

Connector No. Type 2: Sealing ring

Connection type no. 2 - male/female: Male

Connection no. 2 thread diameter: 1/4 inch

Number of threads per inch of thread connector no. 2: 19

Connection no. 2 thread type: BSP

Wrench size for connector no. 2: 14.0 mm

Pipe diameter: 6 mm

ISO standard: 228

Inner diameter: 4 mm

Length: 29 mm

Max working pressure: 500 BAR

Seal material: Nitrile rubber [NBR]

Series: 6L

Max tightening torque: 50 N m

Advantages

- Limited risk of leakage

Product Details

- For direct connection to metric hose nut or pre-assembled fitting - Highly resistant to corrosion - Hydraulic hoses

- Hydraulic pipes - Do not use for 4-braid HDR hoses (4SP)

Benefits

- Low risk of leakage

Dimension from the axis of the connector to the end of the next connector

24.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector

10 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
