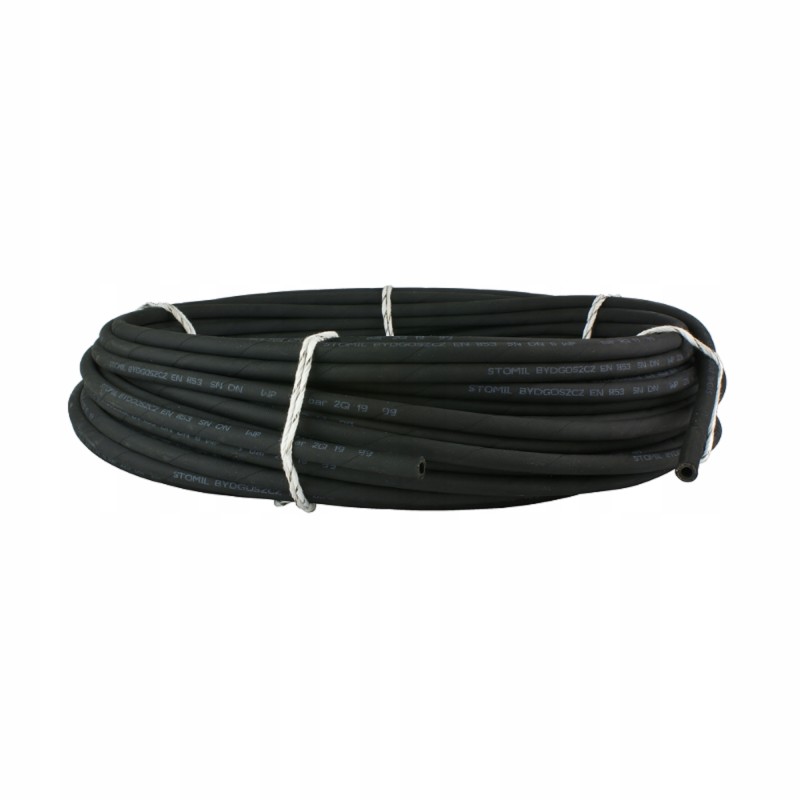

Reinforced hydraulic hose 1sn dn8 215bar stomil

STOMIL BYD HYDRAULIC HOSE. DN8 1SN 215bar 5/16 INCH 1 PIECE = 1 METER Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.01.008

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 25L/min and a pressure of up to 215bar. The hose fits all fittings and sleeves from the DN8 group, which have the symbol 1SN in their symbol.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness. Outer layer: synthetic rubber resistant to oils, fuels and difficult weather conditions. Inner reinforcing layer: single steel cross braid. Operating temperature range of all layers: -40°C to 100°C. Recommended nominal working pressure max. 215bar. The test pressure is twice the nominal pressure. The bursting pressure is four times higher than the nominal pressure

Inner diameter of the passage: 8mm

Outer diameter: 15mm

Production: Polish Stomil Bydgoszcz
