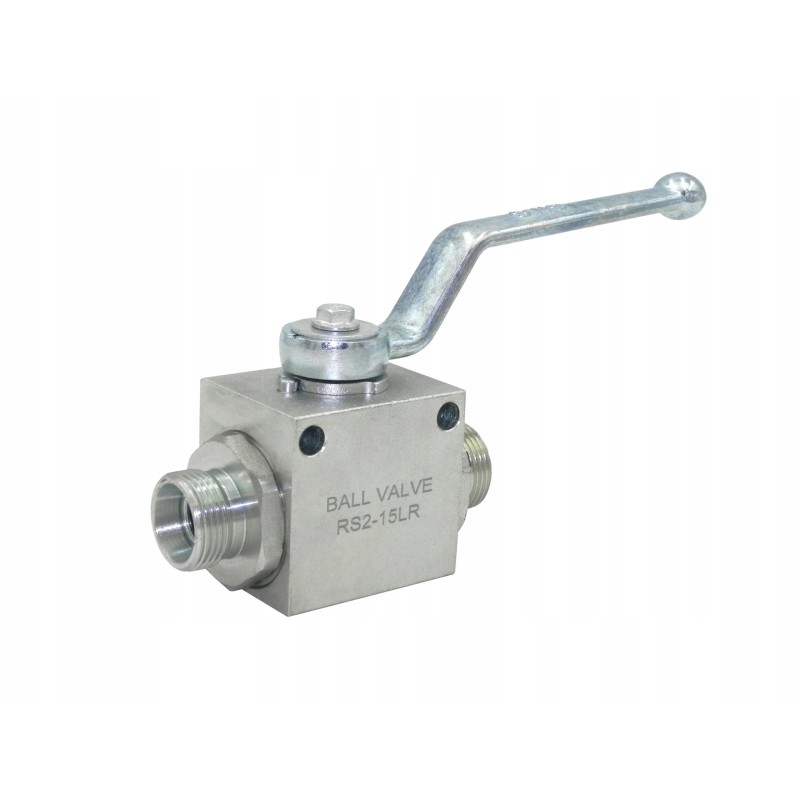

Hydraulic manual ball valve, 2-way, 18x1 5

2-WAY HYDRAULIC BALL VALVE, EXTERNAL THREAD M18x1.5 12L Application: Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry. Connection: Connection A and P to the power line where there is a need to open and close flow.

Principle of operation:

The 'close/open' valve is used to block the oil flow on a single hydraulic line. The valve can be closed and opened even at high pressure.

Technical data:

Number of hydraulic holes in the body: 2

External threads in the body: M18x1.5 12L

Body material: galvanized steel

Permissible maximum pressure: 500 bar

Weight: 0.650 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

We offer most types of hydraulic motors as well as the complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
