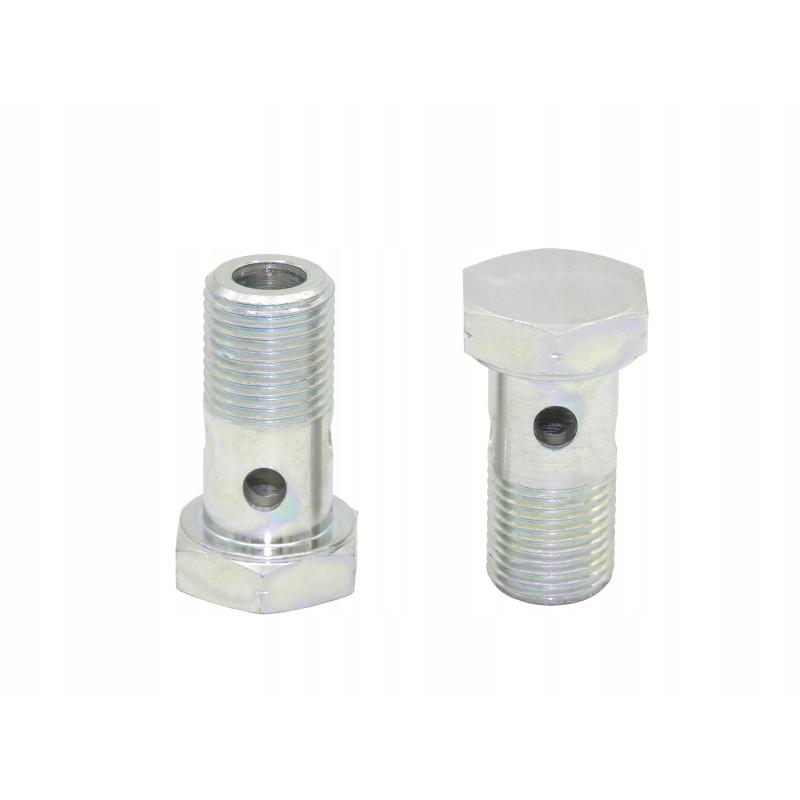

Hydraulic screw with eyelet 1 4 eyelet
  • Hydraulic screw with eyelet 1 4 eyelet
  • Hydraulic screw with eyelet 1 4 eyelet

Hydraulic screw with eyelet 1 4 eyelet

15010420218772
£9.70
Quantity
5 Items

Description
HYDRAULIC EYEL SCREW FI 1/4'Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The eye connection system is used where there is limited space and a crimped cable with a traditional elbow does not fit.

The screw fits connections with a ring body. Connects the pump, cylinder, distributor, etc. with hydraulic lines.

Technical data:

Thread: external inch 1/4'

Required eyelet diameter: 1/ 4'

Recommended thickness of the eyelet connection body: 13 - 14mm

Hexagon head tightened with a wrench: 19

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

In its We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010420218772
SRU G1/4
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
SRU G1/4
