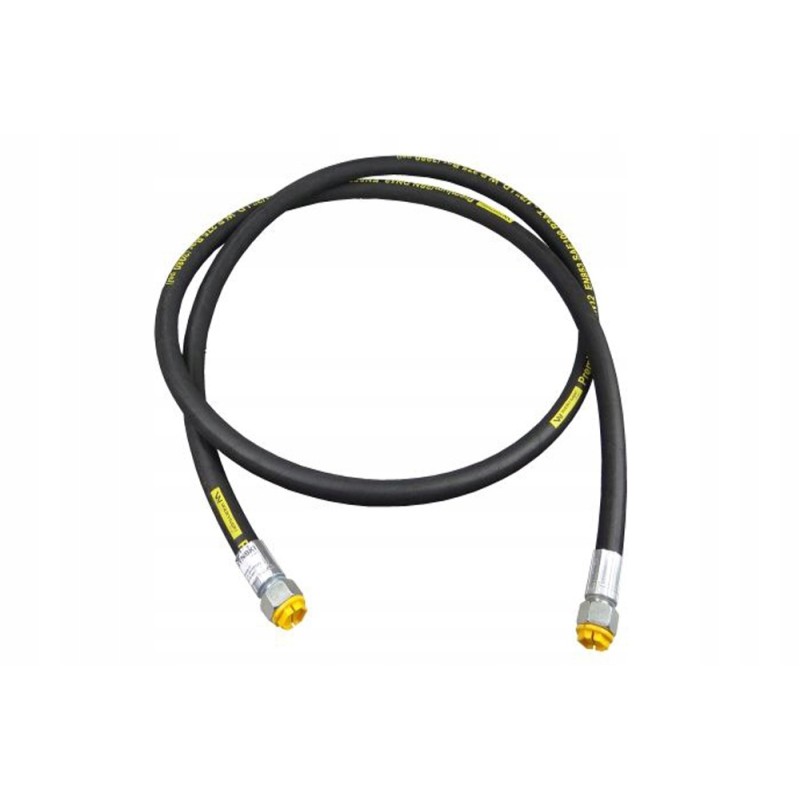

Hydraulic hose m22x1 5 l2500mm Warynski

HYDRAULIC HOSE 275 BAR THREAD M22X1.5 STRAIGHT L-2500MM DN12-2SN 7214/07-151/0 CYKLOP (AA-13-2500, P11P11) 27.5MPA WARYŃSKHYDRAULIC HOSE 275 BAR THREAD M22X1.5 PROS TE L-2500MM DN12-2SN Waryński *Parameters:

*Operating temperature: -40 to +100 ˚C

*Length: 2500 mm

*Crimping 2/ thread: Straight/nut M22x1.5

*Crimping 1 /thread: Straight/nut M22x1.5

Waryński hydraulic hose 275 bar (27.5MPa) - flexible, multi-functional forged hose reinforced with a double braid of steel wire. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.

*Interchangeable indexes: Hydraulic hose thread 22x1.5 7214/07-151/0 Cyklop Stomil P11P11/233/13-2500 7214/07-151/0

-️ Application: Hydraulic drives and controls in industry and agriculture Cyklop

* Producer: Waryński
