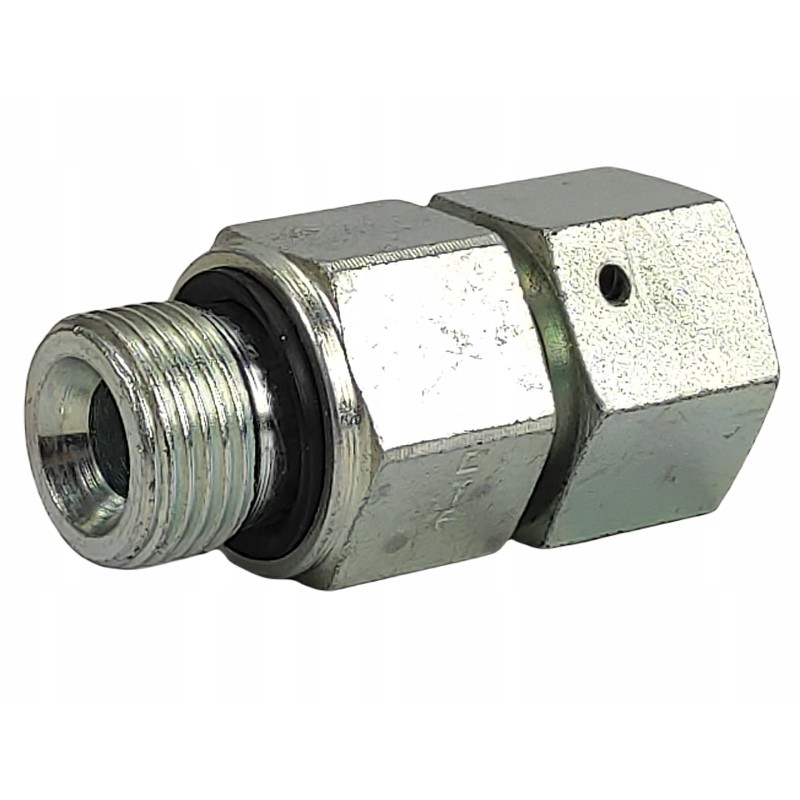

Connector m18 3 8 ab

M18-3/8' AB connector Symbol: 4233

EAN: 4059139290024

Formula type: GEVR

Description: Straight plug-on connector

Series: 12 L

Male thread: G 3/8'

PN (bar): 400

Connection thread: M18 x 1.5

Version: Gerade

L1 (mm): 34

L2 (mm): 46

Material: steel

S1 (mm): 22

S2 (mm): 22

T2 (mm): M18 x 1.5

Seal type: Weichdichtung

T1 (mm): G 3/8'

Surface: Cr6-free

connection 1: BSP-male cylindrical thread, version E

connection 2: metric nut thread, 24° external cone with O-ring

structure: straight connection

standard: DIN 2353

material: steel, does not contain chromium (VI)

A straight connector is an element used in hydraulic systems to connect pipes or hoses, enabling controlled flow of liquid.

The GEVR-12-L DKO connector means that it is is a GEVR type connector with a DKO connector (for the DKOL connector type - external angle). Size '12-L' indicates a specific coupling size that is compatible with other hydraulic system components.

Size 3/8' indicates the inside diameter of the coupling, which is important to ensure compatibility with other system components such as pipes and hoses.

Hydraulic fittings are used in various applications where controlled fluid flow is crucial, such as in industrial machinery, construction machinery, vehicle hydraulic systems, etc.

The GEVR-12-L DKO 3/8' WD connector is an important element in hydraulic systems, enabling the connection of pipes and hoses, which is important for the proper operation of many devices and machines that use hydraulics.
