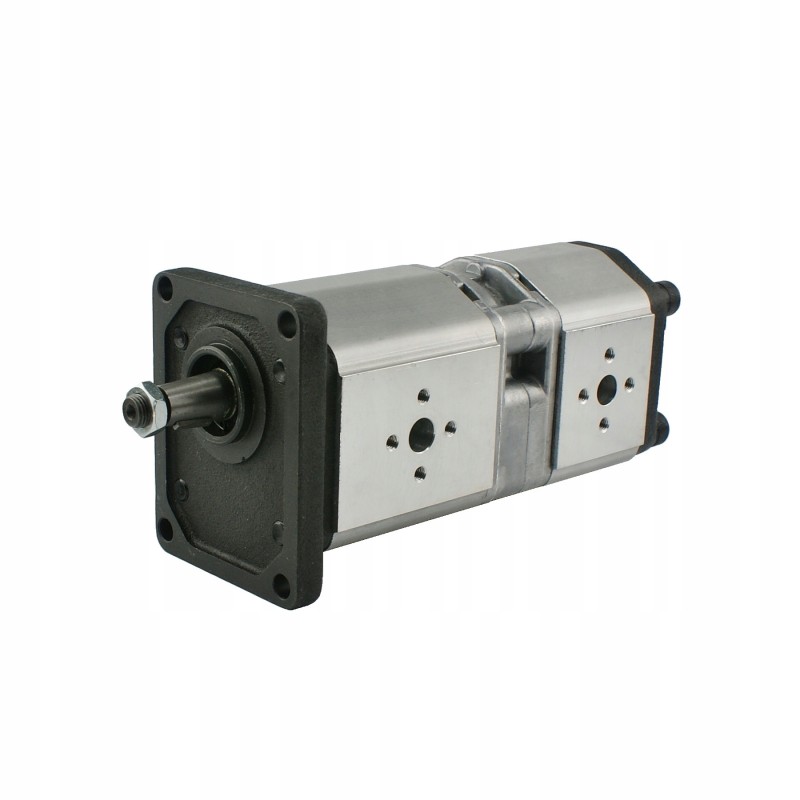

2-section left gear pump, 20 16 cm3 hydrolider

2-SECTION GEAR HYDRAULIC PUMP 20/16cm3/rpm, 30/24 l/min, LEFT

Production:

Hydrolider, symbol: 1.40.11.206

Application :

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

Versatile use in small and medium-sized mobile systems, powerpacks, power supplies, aggregates, in hydraulic systems according to original designs and others.

Recommendations for use:

The manufacturer allows you to freely set the pressure in both systems that supply individual sections of the pump. The user must remember to set the overflow valves on both sections so that the power demand of the second pump (the one at the rear) is lower than the power demand of the first pump. The safest way is to set the same pressure on both pumps, the risk of incorrect setting occurs when the set pressure on the second pump is much higher than that on the first pump. For more information about power requirements and pressure settings, please contact your consultant.

Technical data first section:

capacity: 30 l/min (at 1500 rpm)

geometric volume: 20 cm3/rpm

direction of rotation: left

rotation range: 500 - 3000 (rpm)

pressure in continuous operation: 250 bar

pressure in temporary operation: 300 bar

Technical data second section:

capacity: 24 l/min (at 1500 rpm)

geometric volume: 16 cm3/rpm

direction of rotation: left

rotation range: 500 - 3000 (rpm)

pressure in continuous operation: 250 bar

pressure in operation momentary: 300 bar
