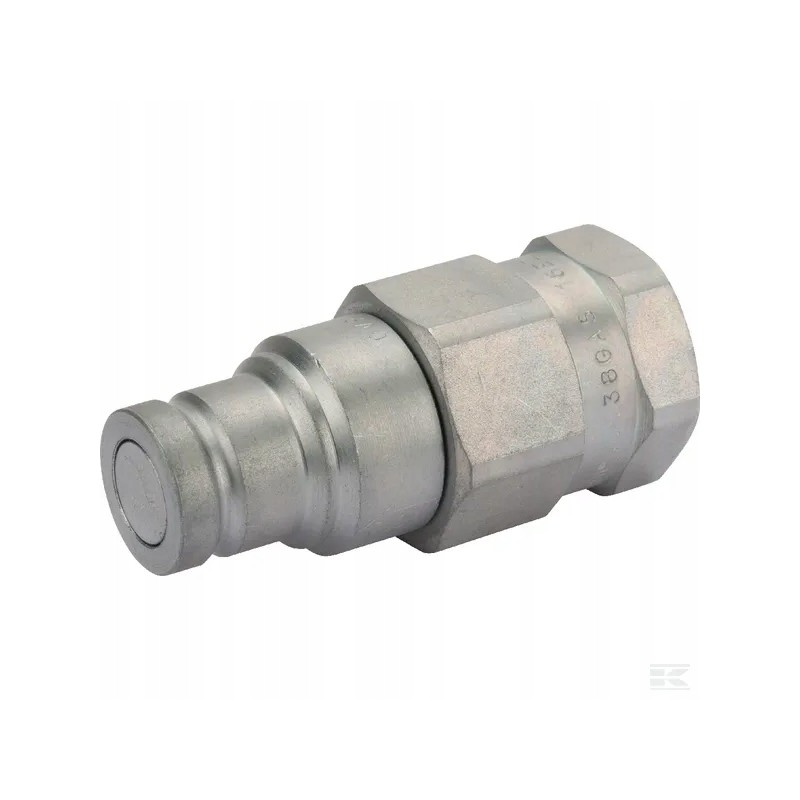

Flat quick connector ffh plug 3 8

Flat Quick Connector FFH Plug 3/8' Female Thread 3/8' BSPApplication:

Part Number: FFH0638GASM

Unit: Piece

Specifications:

One Hand Connection

With Special Flat Valve

Protection against Accidental Disconnection

Application:

Can be used in ecologically sensitive areas

Hydraulic tools

Construction and agricultural machinery

Ship construction

Mineral oil-based fluids

Properties:

Highest corrosion resistance

With shut-off on both sides

Induction hardening in places exposed to rapid wear

Cannot be joined under pressure

Benefits:

Easy operation

Minimum leakage rate

Connection without air inclusions

Shape: Straight - 2 sides connection

Size (code):BG 2

Size: 3/8 inch

Size: 10 mm

Connector type no. 1: Quick connector

Connector type No.1 - Male/Female: Male

No.1 Connection Diameter: 0.78 inch

D3 Connector No.1 Diameter: 19.7mm

HEX.1Connector No.1 Key Size: 1.18 inch

HEX.1Connector No.1 Key Size: 30 mm

Type of connector no. 2: Thread

Type of connector no. 2 - male/female: Female

Thread Diameter of thread of connector no. 2: 3/8 inch

Number of turns per inch of thread of connector no. 2: 19

Thread type of connector no. 2: BSPP

Possibility of connecting under pressure: No

ISO standard: 16028

Flow at 2 bar pressure: 350 l/min

D1 Outer diameter: 1.3 inch

D1 Outer diameter: 33 mm

L1 Total length: 2.69 inch

L1 Total length: 68 mm

Material: Carbon steel

Surface treatment:

Zinc

Nickel-plated

Working pressure: 50 BAR

Max. working temperature: 125 °C

Min. working temperature: -25 °C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Disconnection method: Sleeve offset

Seal material: Nitrile rubber [NBR]

Series: FFH

Valve type: Flat

Weight: 230.8 g
