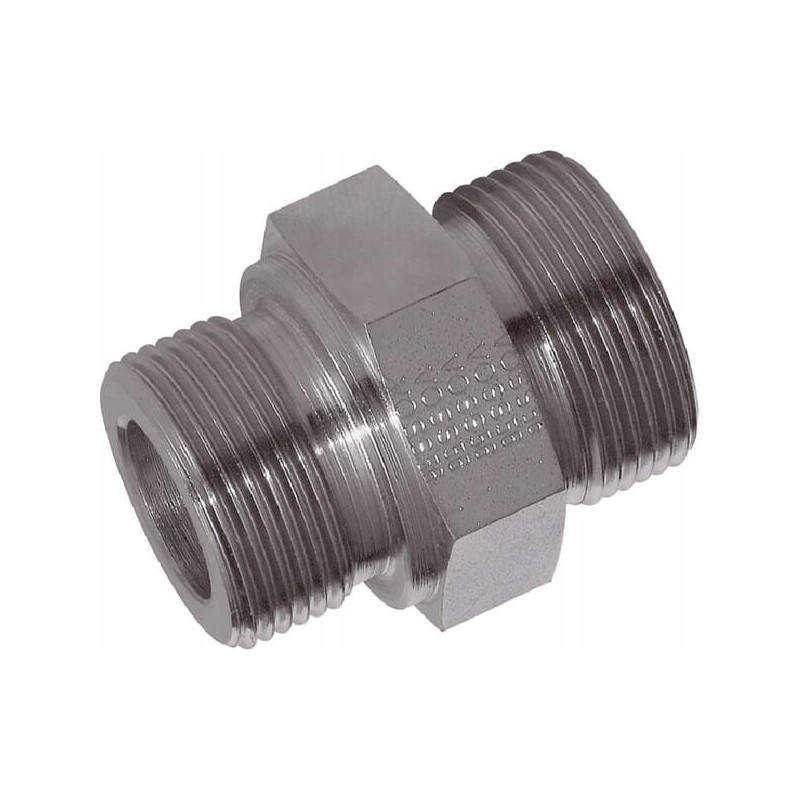

Straight connection m16x1 5 m16x1 5 10l ges10lm16 vos

Straight connection M16x1.5 - M16x1.5 10L Parameters

Part number: GES10LM16

Unit: piece

Manufacturer: Voss

Properties : - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector No. 1 diameter: 10 mm

Connector No. 1 thread diameter [d2]: 16 mm

Connector No. 1 thread length [K]: 12 mm

Inner diameter: 7 mm

Max working pressure: 400 BAR

Thread pitch of connector no. 1 [d2]: 1.5 mm

Series: 10L

Max tightening torque: 80 N m

Wrench size for connector no. 1: 21 mm

Wrench size for connector No. 1 [S1]: 22 mm

Connector No. 1 thread type: Metric

Connector No. 2 type: Thread

Connector No. 2 type - male/female : Male

Connector No. 2 thread diameter [d1]: M16

Connector No. 2 thread pitch [d1]: 1.5 mm

Connector No. thread type 2: Metric

Wrench size for connector no. 2 [S2]: 19 mm

Pipe diameter: 10 mm

ISO standard: 228

Length: 31.5mm

Specifications

- For direct connection to metric hose nut or pre-assembled connector

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- On order available in a stainless steel version

Surface treatment

- Zinc

- Nickel-plated

Dimension from the axis of the connector to the end of the next connector [ L2]

27.5 mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

12.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401
