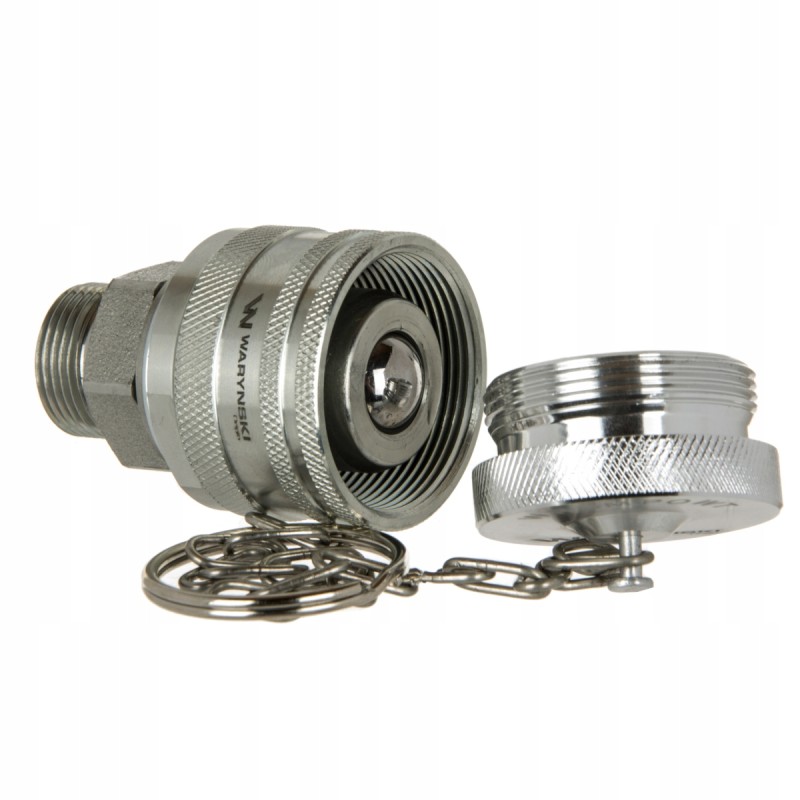

Screwed connector plug M22x1.5 50490030 with threaded cover and aluminum cover Waryński MIZAR number: 58213
Screwed connector plug M22x1.5 50490030 with threaded cover and aluminum cover Waryński Catalog number: 50490030
Fits sockets: WRSM22GN, WRSM18GN, WRSM20GN, WRSM22WEWGN, WRSM18GN-KP, WRSM22GN-KP
Technical information:
External thread: M22x1.5
Type: twisted plug
Cone: 15L
Max. working pressure: 250 bar
Operating temperature: from -25°C to +120°C
Set - valve plug M22x1.5, screwed (50490030) with threaded aluminum cover/cover Waryński. The most popular old-type hydraulic valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. The aluminum cover (plug) with external thread and a chain perfectly fits screw-on valves - plugs of the WRS Waryński series. Protects the quick coupler and hydraulic system against all kinds of dirt during operation.
MIZAR number: 58213
