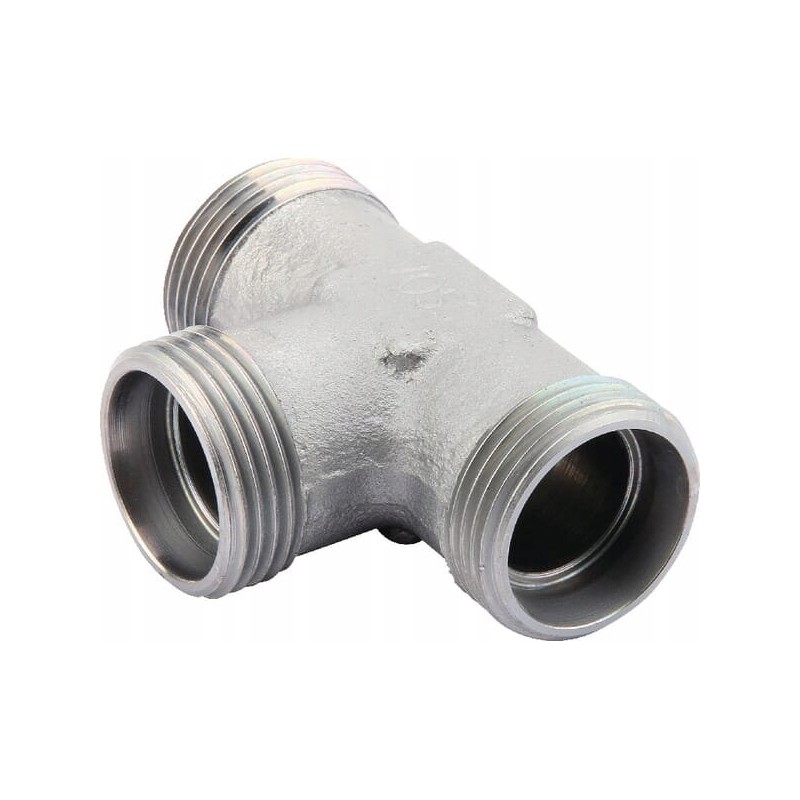

Tee connector M16x1.5 8S Parameters

Part number: TS8S

Unit: piece

Manufacturer: Voss

Properties: - High resistance against corrosion

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Connection diameter: 8 mm

Connector thread diameter: M16

Connector no. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Connector Wrench Size: 19mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connection Diameter No. 2: 8 mm

Length of connector No. 2: 17 mm

Thread diameter of connector No. 2: M16

Thread pitch of connector No. 2: 1.5 mm

Connector No. 2 Thread Type: Metric

Connect No. 2 Wrench Size: 19 mm

Connect No. 3 Type: Thread

Connector No. 3 Type - Male/Female: Male

Connection No. 3 Diameter: 8 mm

Connector No. 3 Thread Diameter: M16

Connector No. 3 Thread Pitch : 1.5 mm

Connector No. 3 thread type: Metric

Pipe diameter: 8 mm

Inner diameter: 5 mm

Total length: 48 mm

Body height: 17 mm

Max working pressure: 800 BAR

Series: S

Specifications

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

Dimensions from joint axis to the end of the next joint

- 17 mm

- 24 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel-plated
