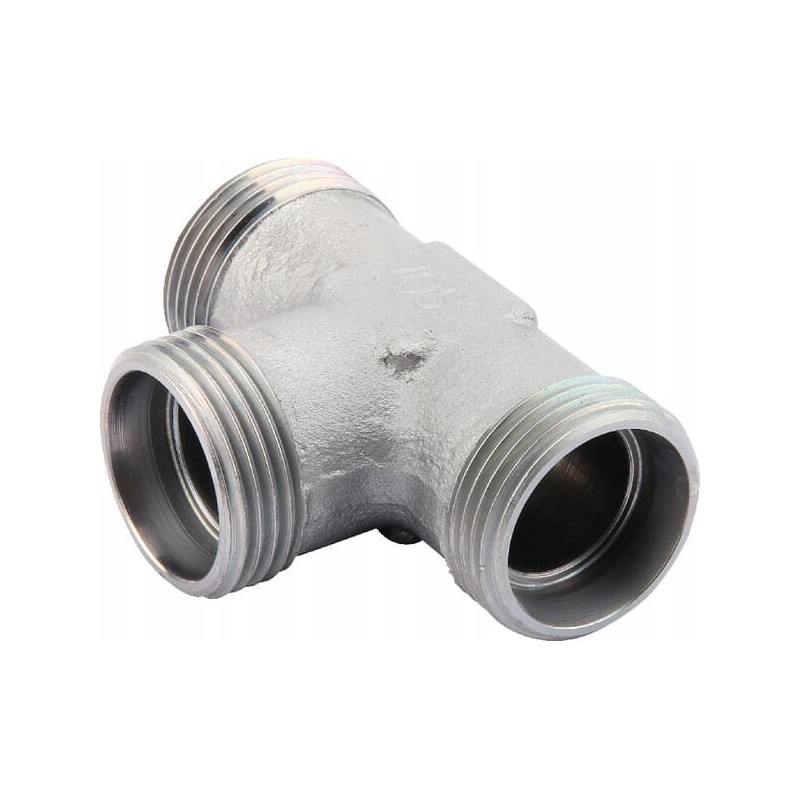

Tee connector m14x1 5 8l ts8l voss

Tee connector M14x1.5 8L Parameters

Part number: TS8L

Unit: piece

Manufacturer: Voss

Properties: - High resistance against corrosion

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Connection diameter: 8 mm

Connector thread diameter: M14

Connector No. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Connector Wrench Size: 17mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connection Diameter No. 2: 8 mm

Length of connector No. 2: 14 mm

Thread diameter of connector No. 2: M14

Thread pitch of connector No. 2: 1.5 mm

Connector No. 2 Thread Type: Metric

Connect No. 2 Wrench Size: 17mm

Connect No. 3 Type: Thread

Connector No. 3 Type - Male/Female: Male

Connection No. 3 Diameter: 8 mm

Connector No. 3 Thread Diameter: M14

Connector No. 3 Thread Pitch : 1.5 mm

Connector No. 3 thread type: Metric

Pipe diameter: 8 mm

Inner diameter: 6 mm

Total length: 42 mm

Body height: 14 mm

Max working pressure: 500 BAR

Series: L

Specifications

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

Dimensions from joint axis to the end of the next joint

- 14 mm

- 21 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel-plated
