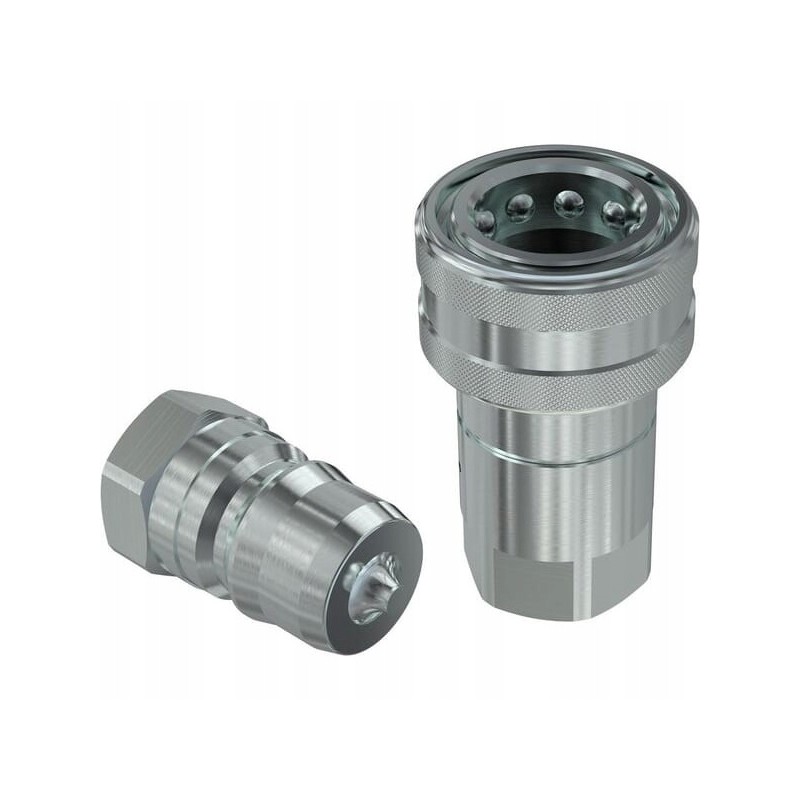

Hydraulic quick connector 3 8 bsp ig hnv38gasf

Material: Carbon steel

Valve type: Disc valve

Shape: Straight - 2 sides connection

Size: 10 mm

Outer diameter: 35 mm

ISO standard: 7241-B

Series: HNV

Connector thread diameter: 3/8 inch

Connection Diameter: 35mm

Surface Treatment: White Passivated

Connector Thread Type: BSP

Total Length: 78 mm

Wrench Size: 0.94 inch

No.2 Connector Thread Type: BSPP

Seal Material: Nitrile Rubber [NBR], Teflon (PTFE)

Weight: 218 g

Working pressure: 300 bar

Connector type - male/female: Female

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Maximum operating temperature: 125 °C

Minimum operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve offset

Connector type: Quick connector

Connector no. 2 thread diameter: 3/8 inch

Disconnection method: Sleeve offset

Connector type no. 2 : Thread

Number of threads per inch of thread of connector No. 2: 19
