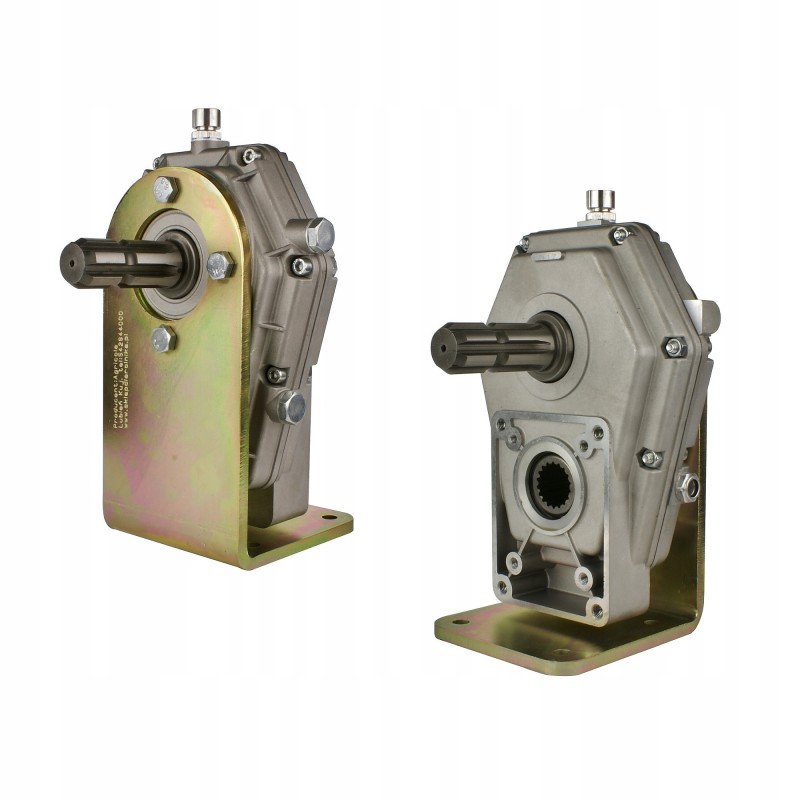

Multiplier 20kw 1 3 8 ww gr2 gr3 wl hydrolider

MULTIPLICATOR WITH 1:3.8 GEAR RATIO IN A SET WITH A BRACKETProduction:

Original product of the Hydrolider brand, symbol: 1.45.10.015.2

Application:

It has a wide range of applications in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The gearbox is ideal for driving hydraulic pumps of groups 2 (20) and 3 (30) with a European-type flange.

Designed to work in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with PTO output.

The gearbox has a protruding shaft on one side PTO, on the other side there is a place to screw the pump and another PTO shaft, which can transfer the drive to another machine.

Technical data of the transmission:

Pump mounting: 4 holes, GR20 spacing : 71.5x96.2 or GR30: 98x128

Pump centering flange diameter: 36.5mm or 50.8mm

Pump shaft type: conical 1:8

Multiplier gear ratio: 1:3.8

Multiplier power: 20kW

PTO shafts standard 1.3/8' DIN9611

Maximum input speed: max 540 rpm/ min

Maximum output speed: max 2052 rpm

Has a viewfinder to check the gear oil level

When used for the first time, to increase the life of the gear, it is recommended to replace it oil after the first 50 operating hours.

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Requires filling with gear oil.< p>

When used for the first time, replace the oil after 50 operating hours

Gear mounting bracket:

Material: steel

Coating: galvanized

Sheet thickness: 8mm
