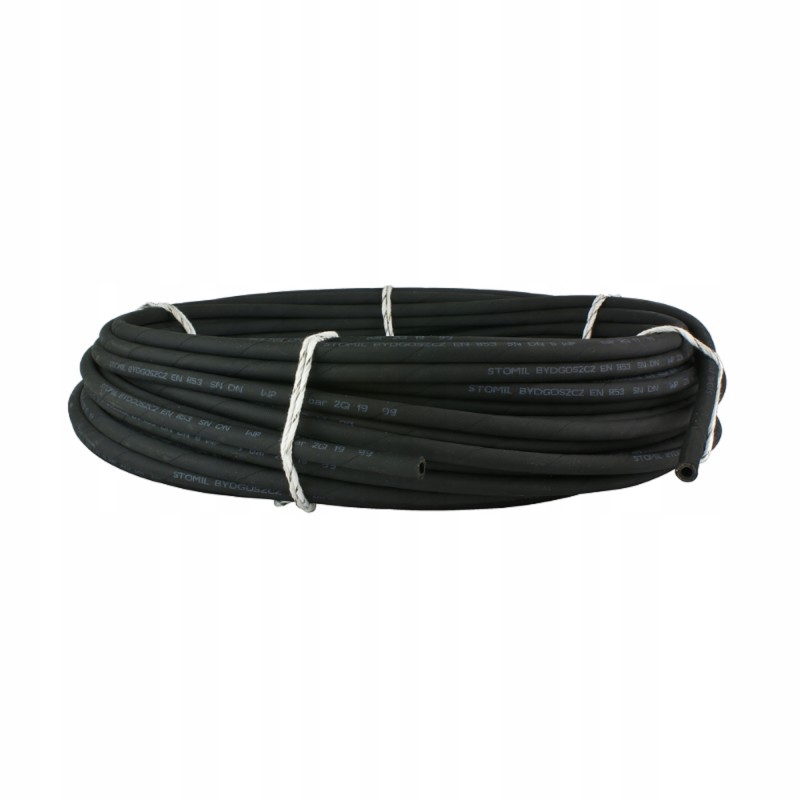

Reinforced hydraulic hose 1sn dn6 225bar stomil

STOMIL BYD HYDRAULIC HOSE. DN6 1SN 225bar 1/4 INCH 1 PIECE = 1 METER 1 piece = 1 meter Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.01.006

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 15L/min and a pressure of up to 225bar. The hose fits all fittings and sleeves from the DN6 group, which have the symbol 1SN in their symbol.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness. Outer layer: synthetic rubber resistant to oils, fuels and difficult weather conditions. Inner reinforcing layer: single steel cross braid.

Operating temperature range of all layers: -40°C to 100°C Recommended nominal operating pressure max. 225bar.The test pressure is twice as high as the nominal pressure.The bursting pressure is four times higher than the nominal pressure

Inner diameter of the passage: 6mmOuter diameter: 13mmProduction: Polish Stomil Bydgoszcz
