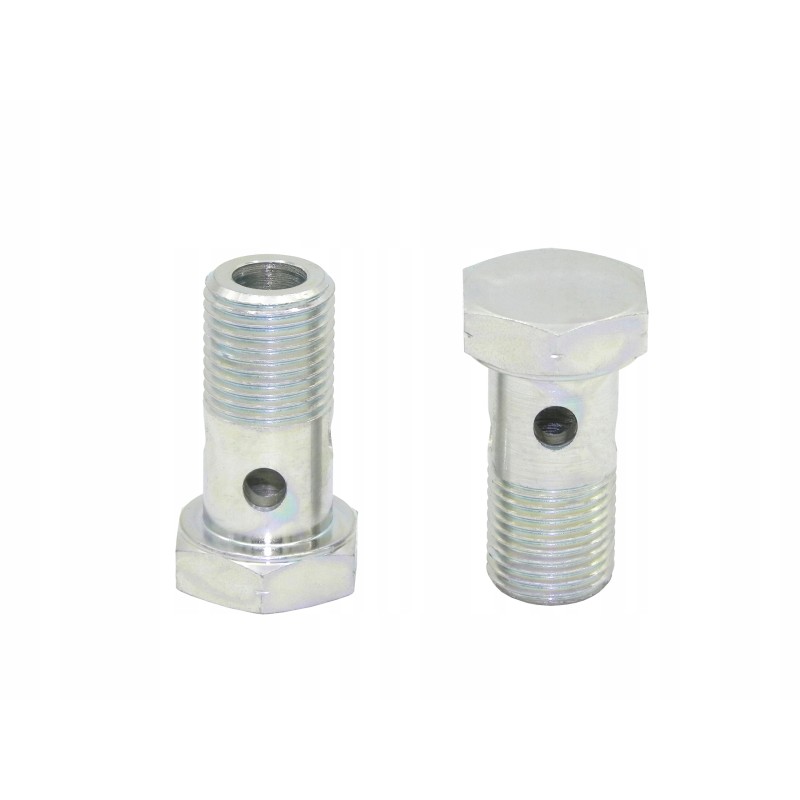

Hydraulic screw with eyelet 27x2 eyelet
  • Hydraulic screw with eyelet 27x2 eyelet
  • Hydraulic screw with eyelet 27x2 eyelet

Hydraulic screw with eyelet 27x2 eyelet

15010420204001
£11.76
Quantity
5 Items

Description
HYDRAULIC EYEL SCREW FI 27mm Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The eye connection system is used where space is limited. and a crimped cable with a traditional elbow does not fit.

The screw fits connections with a ring body. Connects the pump, cylinder, distributor, etc. with hydraulic lines.

Technical data:

Thread: external metric 27x2

Required eyelet diameter: 27mm

Recommended thickness of the eyelet connection body: 22 - 27mm

Hexagonal head tightened with a wrench: 30

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

We offer most types of hydraulic motors as well as the complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010420204001
SRU M27
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
SRU M27
