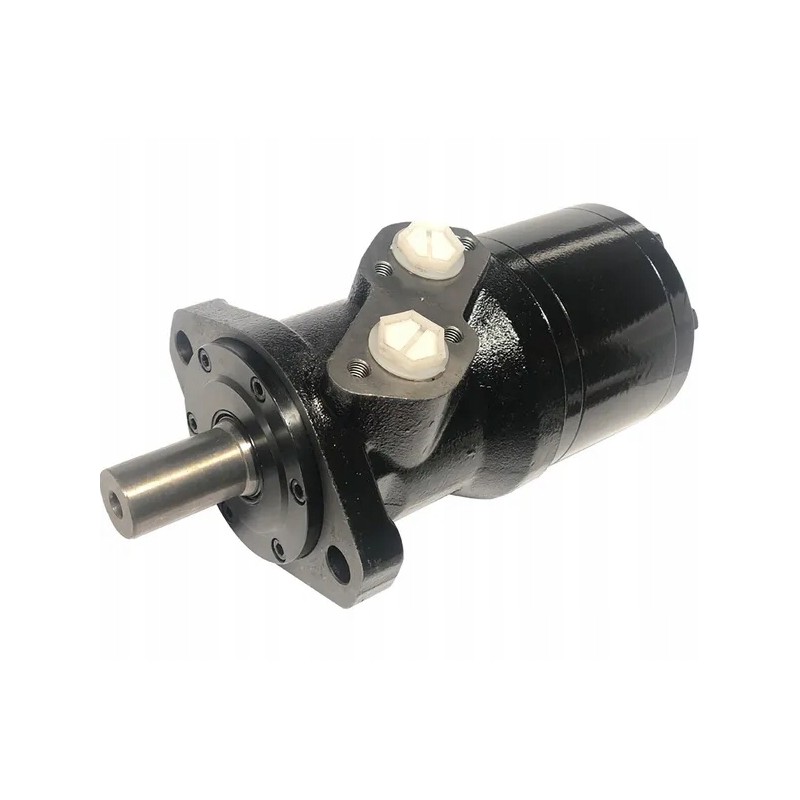

Smr80a225ygp orbital engine 80cc gopart

SMR80A225YGP 80cc orbital engine gopartEAN

8719607280174

Specifications

High axial and radial axle load and high tightening torque

Low wear

Application

Bale wrapper

Can be used wherever high torque and low rotational speeds are required

Also suitable for continuous change of direction revolutions

Can be used continuously under high pressure

Suitable for use in closed systems

Properties

With leakage oil drain

Roller design

Wide shaft plain bearing

Possibility to connect in series with multiple motors

From the series of medium orbital motors

Robust and compact design

Benefits

Good price-quality ratio

Long service life

Collar shape

Oval< p>

Number of mounting holes

2

Shaft type

Cylindrical

Shaft diameter

25 mm

Performance

80 cm³/rev

Continuous torque max.

152 N m

Continuous working pressure max.

140 BAR

Momentary working pressure max.

175 BAR

Working pressure max.

200 BAR

Maximum flow

60 l/min

Maximum rotational speed

745 rpm< p>

Minimum rotational speed

10 rpm

Main connection thread diameter

1/2 inch

Main connection thread type

BSP

Drain connection thread diameter

1/4 inch

Drain connection thread type

BSP

Connection position

Side

Rotor length

14 mm

Max. power

12.5 kW
