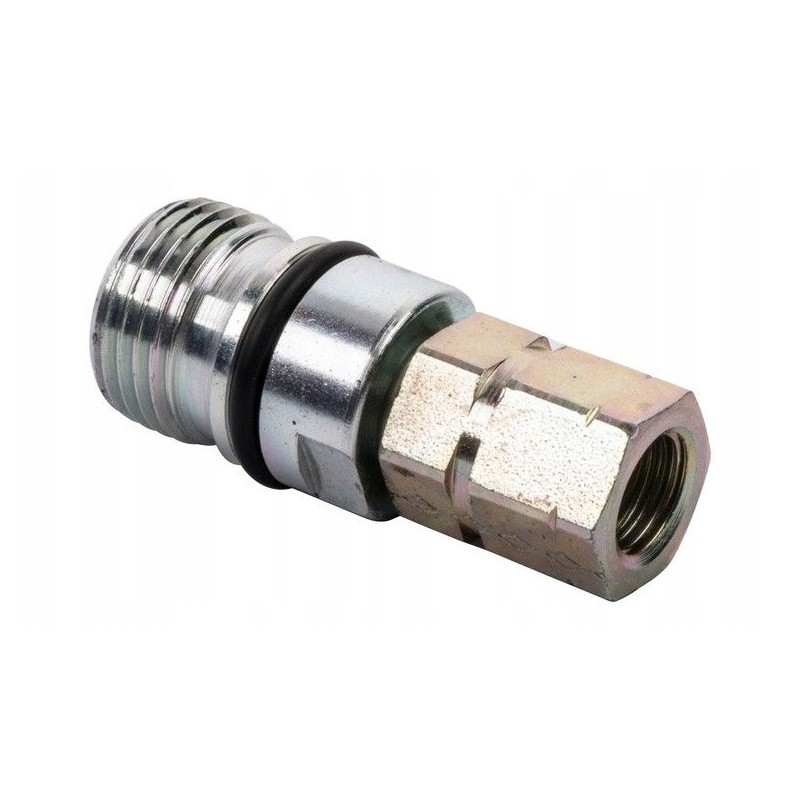

Screwed quick connector 1 4 internal thread 1 4

The subject of the offer is: Screwed quick connector 1/4' internal thread. 1/4' BSP type SKS-FS HS series quick couplings, thanks to their strong construction, are ideal for applications with high working pressure and difficult working conditions. They can be connected or disconnected at pressures up to 50 bar. The self-locking system prevents the thread from disconnecting due to vibration. The socket nut must be screwed onto the plug securely so that the black stop ring is completely covered. Only in the final position do both valves open.

TECHNICAL INFORMATION:

A: 19mm

D: 24mm

D1: 13mm

D2: 1/4'

Internal thread: 1/4' BSP

External thread: M24x2mm

Length L1: 60mm

L2: 18mm

L3: 13mm

SW: 22mm

Maximum flow: 20 L/m

Operating temperature range: -30 °C / +100 °C

Nominal pressure: 450 BAR Material: galvanized steel Original number: HS041IGF04

MIZAR number: 47458
