Pgso132490 tip dn13 m24x1 5 16s 90

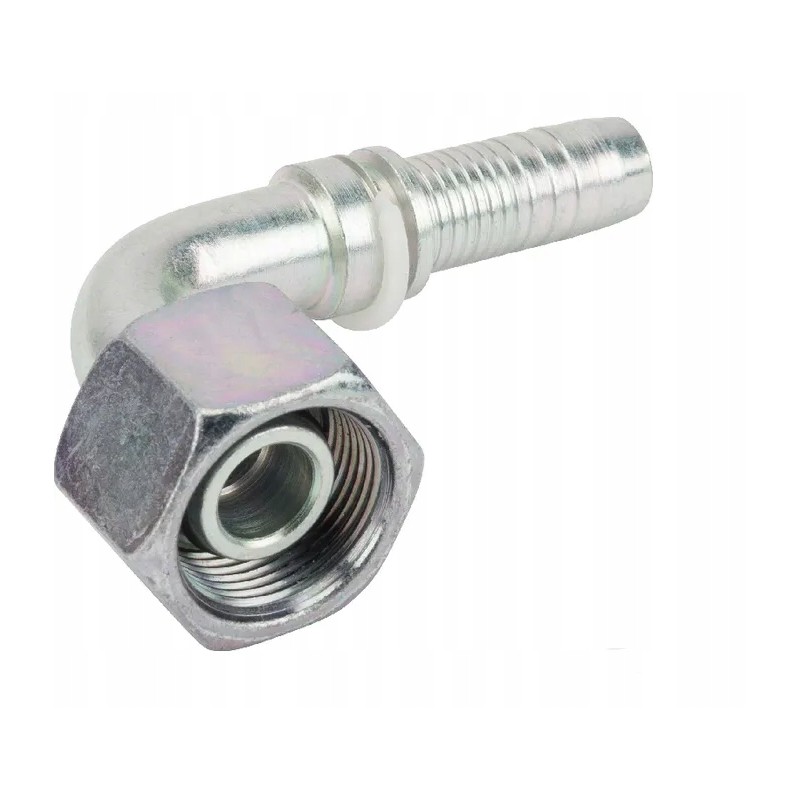

PGSO132490 End cap DN13-M24x1.5-16S-90°EAN

8716106787531

Product details

Cone, cone seal with O-ring

S series cutting ring connection

Includes

Tips

O-ring

Cone angle

24 °

Shape

Elbow - 2 sides of connection

Connection type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOS

Length of connector no. 1< p>

39.8 mm

Thread diameter of connector no. 1

M24

Thread pitch of connector no. 1

1.50 mm

Wrench size for connector no. 1

30.0 mm

Type of connector no. 2

Hose connector

Connector No. 2 Type - Male/Female

Male

Connection No. 2 Diameter

1/2 inch

Connection No. 2 Diameter

13 mm

Length of connector no. 2

41.5 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

Series< p>

16S

OE reference number

H1221693-082400

Connection

xx

Type

DKOS
