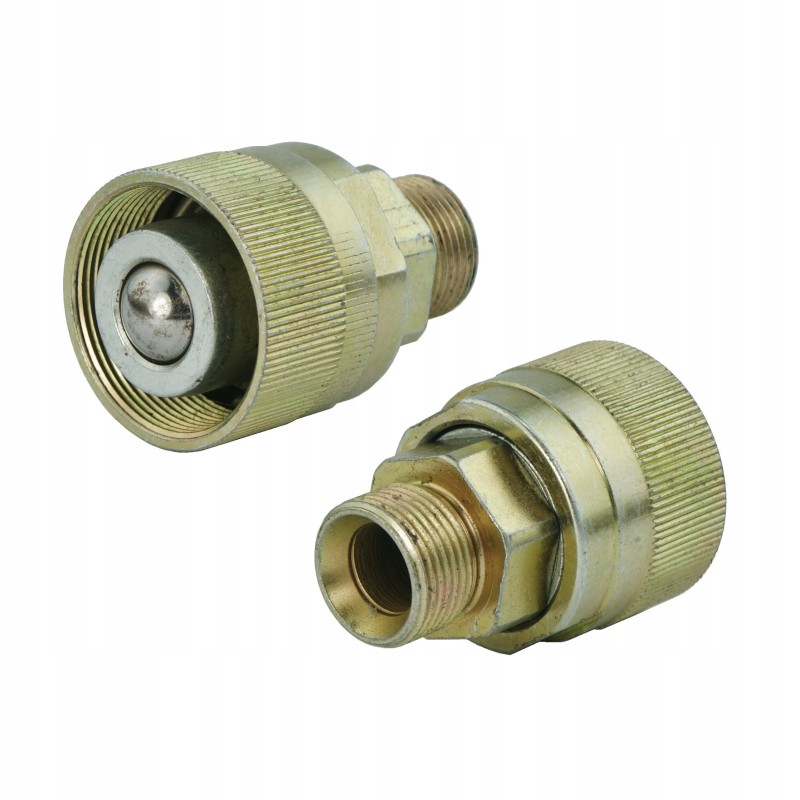

Screwed quick connector, old type, valve, M18 plug

HYDRAULIC QUICK CONNECTOR PLUG OLD TYPE SCREWED THREAD 18x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.60.55.139

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Quick connector type: screwed socket

Plug side thread: external metric 36x1.5

Cable side thread: external metric 18x1.5

Type thread: short, external

Clamping cone angle: 24° (typical for the Polish standard)

Weight: 0.20kg

Liquid type: hydraulic oil

Material: galvanized steel
