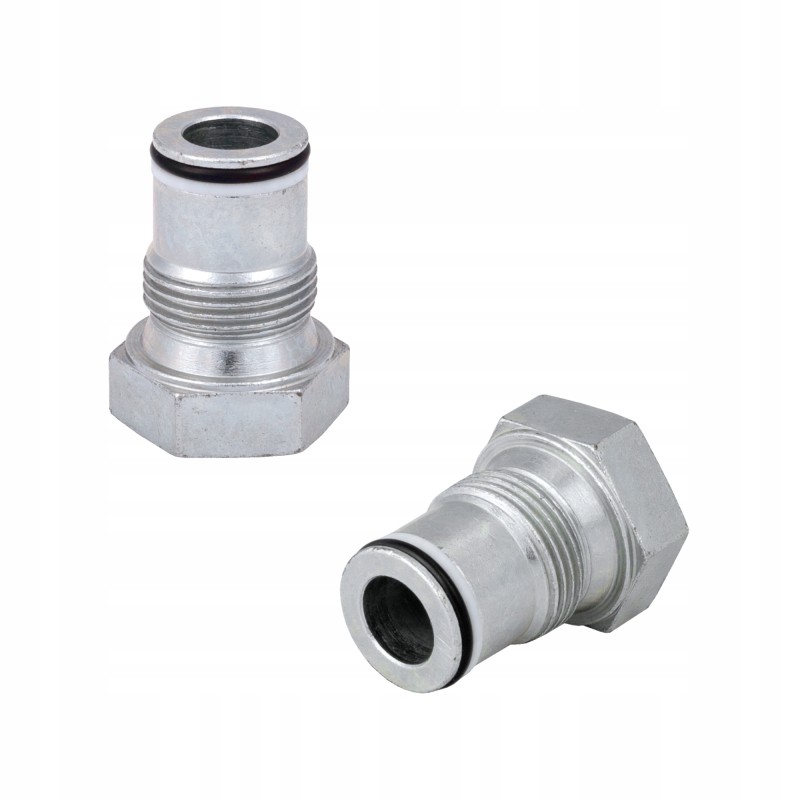

Pressure sleeve cn p80 3 4 badestnost

PRESSURE SLEEVE FOR SERIES CONNECTIONS OF P80L/min DISTRIBUTORS BADESTNOST Production:

Original product of the Badestnost brand, symbol: 1.10.70.214

Application:

It is widely used in hydraulic systems in construction, agriculture and industry.

Blinded pressure sleeve, intended for Basestnost P80 and Z80 manifolds. Screwed into hole N, it allows you to maintain constant pressure in the hydraulic system by blocking the free flow of oil through the distributor to the return line. It changes the hydraulic diagram of the distributor, adapting it to work in closed systems with constant pressure.

The sleeve does not in any way change the operating mode of working units such as actuators or motors, nor does it change the control method individual sections in the manifold.

Technical data:

Thread on the manifold side: BSP 3/4'

Output thread: none

Integration: all P80 lever and electric Z80 Badestnost valves

Material: galvanized steel.

Change of the hydraulic diagram of the 2-section distributor after screwing in the pressure sleeve:
