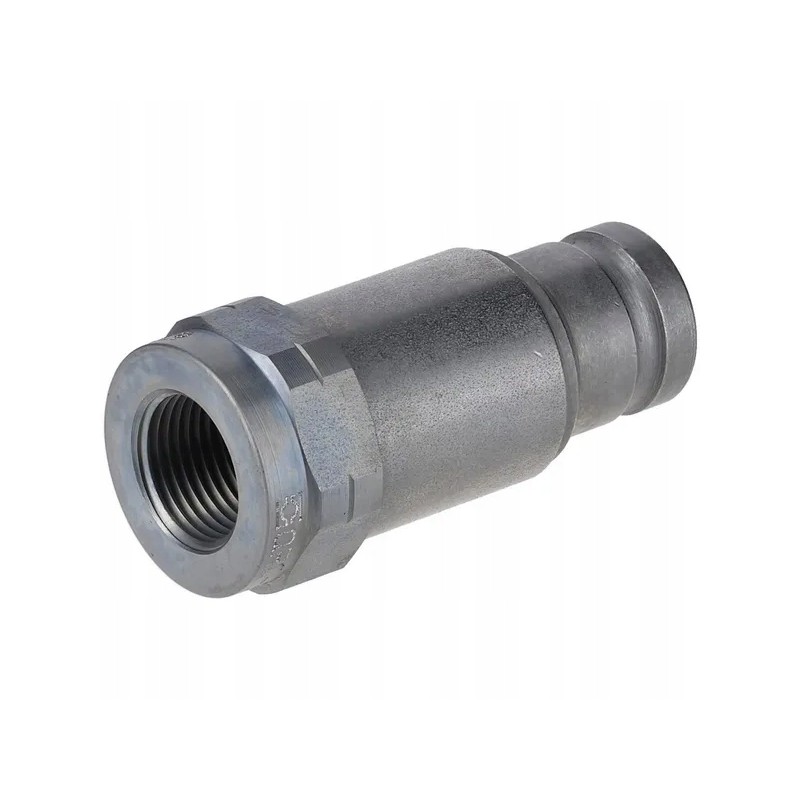

Flat quick connector plug 3 8 internal thread

SKVM10C06 Flat quick connector SKV-M plug 3/8' internal thread 3/8' BSPSpecifications

Connection using one hand

With a special flat valve

Application

Construction and agricultural machinery

Hydraulic tools

Can be used in ecologically sensitive areas

Fluids based on mineral oil

Properties

With double-side shut-off

Highest corrosion resistance

Benefits

Easy operation

Minimum leakage rate

Connection without air inclusions

Shape Straight - 2 sides of connection

Size (code) BG 2

Size 3/8 inch

Connector type no. 1 Quick connector

Connector type no. 1 - male/female Male

ØD1 Connection diameter 19.7 mm

Connector type no. 2 Thread

Connector type no. 2 - male/female Female

Connection thread diameter no. connection thread no. 2 19

Connection thread type no. 2 BSP

Possibility of connection under pressure No

ISO 16028 standard

Flow at pressure 2 bar 50 l/min

Ø D outer diameter 32 mm

L1 Total length 63 mm

Material Steel

Surface treatment Zinc , Nickel-plated

Operating temperature max. 100 °C

Operating temperature min. -30 °C

Seal material Nitrile rubber [NBR], Teflon (PTFE)

Connection type plug

Internal thread type
