Hydraulic choke valve 2 side vrfb 90 3 8 30l

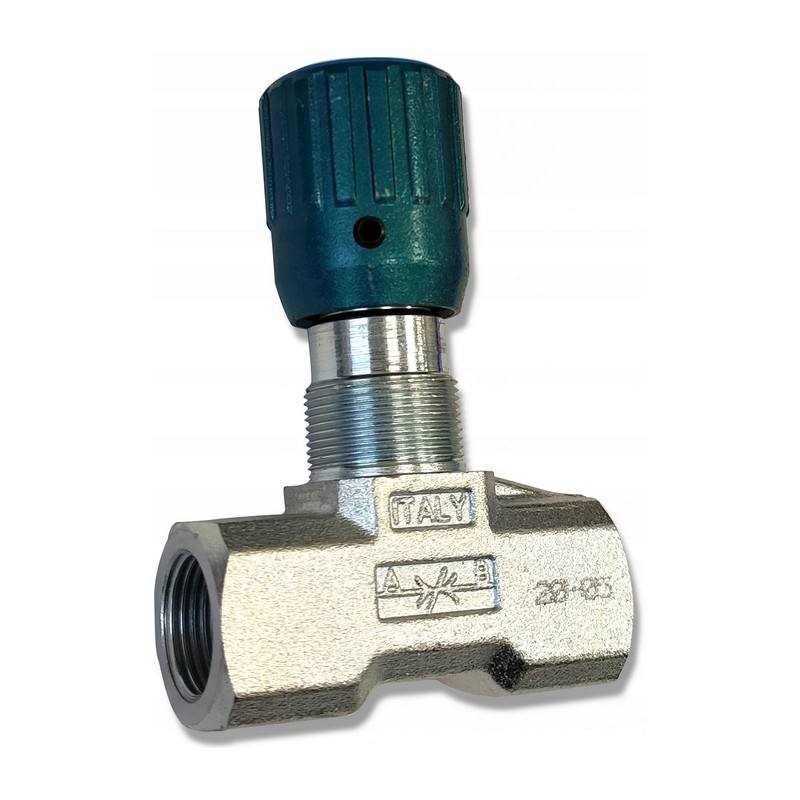

​Two-way throttling valve VRFB 90 3/8 30L with regulation SKRAW-MET CODE: [0334] ​A solid galvanized steel valve - an Italian product. The valve is used in Turs, Cyklops, Plows, forklifts and similar products.

Thanks to it, it is possible is to regulate the oil flow and control the speed of the actuator or hydraulic motor, etc.

The purpose of the valve is to throttle the flow in two directions using a knob.​

Technical specifications: Maximum flow: 30 L/min

Oil viscosity: 15-250 mm2/s (from 15 to 250 cSt)

Recommended oil filtration: 15 μm

Maximum pressure: 400 Bar,

Oil temperature: from -20°C to +80°C

Ambient temperature: from -20°C to +50°C

Dimensions can be found shown in the photo below. Material: The outer body is made of steel and is protected against oxidation by galvanizing. Knob - aluminum. Connection: flow from 1 to 2 or vice versa
