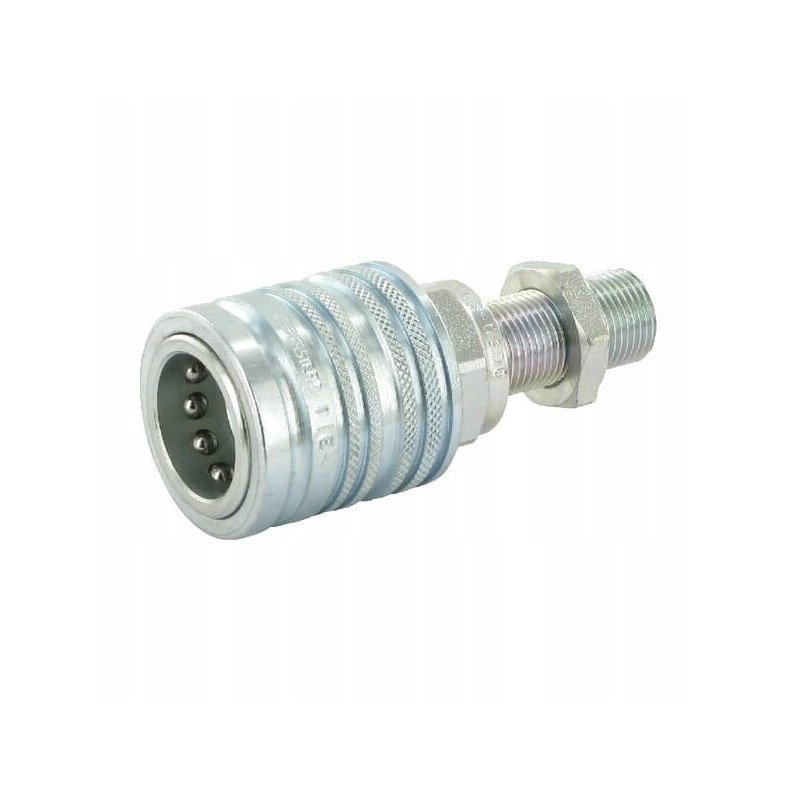

Quick connect PVC socket 1 2 bulkhead thread 1 2

Quick connector PVC socket 1/2 bulkhead thread 1/2 INDEX: CPV08412GASF

Material: Steel

Technical information: - Connection is made by pressing the plug (one-handed operation)

Features: - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double-sided action) - Tear-off function - Induction hardening in places exposed to rapid wear

Valve type: Mushroom valve

Application: - Universal use - Agricultural machinery - Mineral oil based fluids

Size: 1/2' inch

Outer diameter: 48mm

ISO standard: 7241-A

8434-6

Connector thread diameter: 1 /2 inch

Connection diameter: 35mm

Surface treatment: Chrome-plated

Connector thread type: BSP

Total length: 87.8mm

Max working pressure: 300BAR

Seal material: Nitrile rubber [NBR]

Weight: 301.3g

Possibility to connect to pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Size (code): BG 3

Flow at 2 bar pressure : 75l/min

Thread length of connector no. 2: 35mm

Type of connector no. 1: Quick connector

Wrench size of connector no. 1: 27 mm

Thread type of connector no. 1 - code: 04
