Joystick for electric manipulator distributor

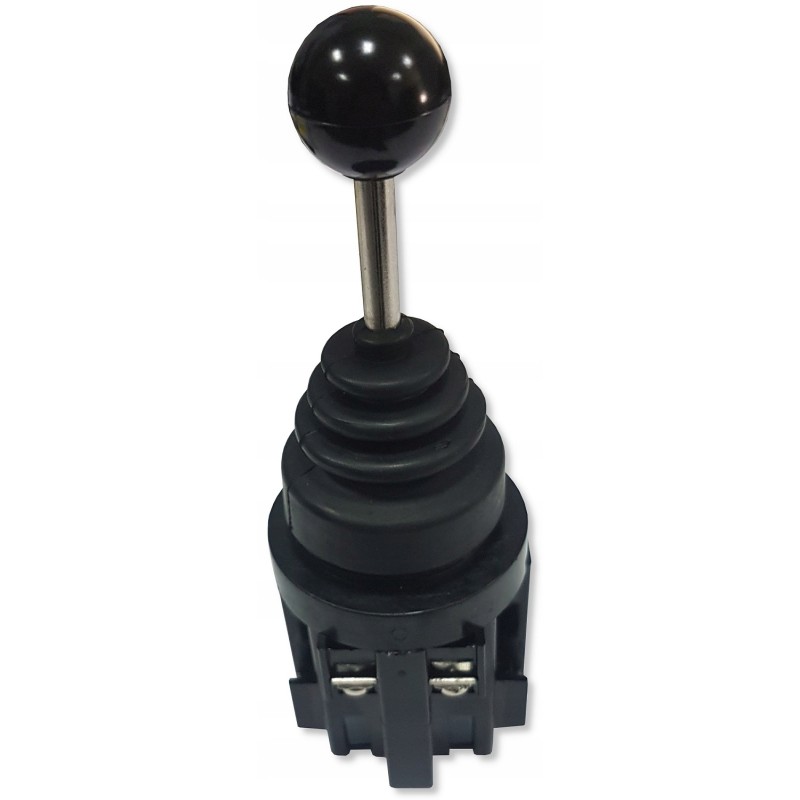

4-position electric manipulator joystick SKRAW-MET CODE: [0173]Joystick with 4 unstable positions and a stable middle position.

If the controller releases the joystick, it returns to the middle - neutral position.

The lever manipulator allows you to control two sections in the electric distributor .

It can be used in agriculture, horticulture, forestry and construction.

CONTROL Four-position spring lever returns to the vertical by itself

Neutral position 0 (lever set vertically), actuator piston rods stand - oil goes to the overflow

Working position 1 (lever set in position diagonal forward) the piston rod of the first cylinder extends

Working position 2 (lever set in a diagonal position backwards) the piston rod of the first cylinder retracts

Working position 3 (lever set in an oblique position to the left) the piston rod of the second cylinder extends

Working position 4 ( lever set in an oblique position to the right) the piston rod of the second actuator retracts

Installation: Designed for installation in a Ø 30 mm hole.

Installation is carried out by unscrewing the lever ball, unscrewing the ring with the cover, inserting the joystick through the hole and re-screwing the ring and ball.

They have a rubber sealing cover that protects against dust, water and is resistant to oil.

Technical specification: Number of positions: 4

Contact units: 4 x NO

Dimensions: 51 x 55 x 146 mm

Test voltage: 2.2kV

AC contact load capacity : 6A / 250V (with resistive load)

Load capacity of DC contacts : 2.2A / 110V (with resistive load)

Insulation resistance min. : 100MΩ

Mechanical durability : 5 * 1050 cycles

Electrical durability : 5 * 1050 cycles

Operating temperature : from -20°C to 50°C

Operating method : Monostable Lever material : Steel
