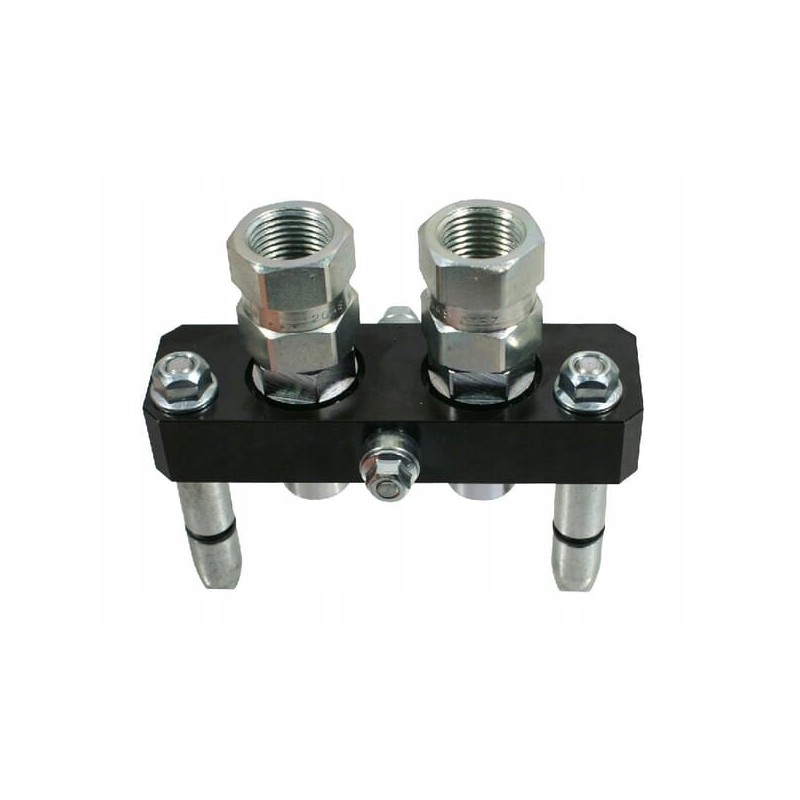

Quick coupler, moving part dn10 2x1 2 bsp

Quick coupler moving part DN10-2 x 1/2 BSP Parameters

Part number: 2PB06212GMC

Unit: piece

Manufacturer: Faster

Category: 2 DN 10 connections

Possibility to connect under pressure: Yes

Connection: 1/2' BSP

Housing material: black, anodized aluminum

Max flow. : 40 l/min

Pmax: 250 BAR

Max. temp: +100 °C

Max. working pressure [bar]: 250

Min. temp.: -25 °C

Weight (g): 786 g

Note: Each type of multi-clutch is specially marked.

Number of plugs: 2

Pmax: 350 BAR

Connection type: Lever

Model: 2PB06

Size: 3/8' inch

Thread [BSP]: G 1/2 inch

Type: Moving Part

Valve Type: Flat

Specifications

- Narrow design

- Simultaneous connection of several cables

- Locking and unlocking with only one handle

- Flat-sealing

- ‎Easy cleaning< p>

Benefits

- Space saving

- No replacement of pipes

- Easier work

- Minimal leakage< p>

- Prevents contamination of the system

Application

- For use when frequently changing tools

- Front loaders

- Telehandlers

- Agricultural machinery

- Construction machinery

Properties

- Connecting without air inclusions

- Coupled safety factor 1:4

Technical information

- The 2P series should be connected under residual pressure (max. 80 bar)

- The 3P series can be connected to a moving part under full pressure

- Replacing the connector inserts allows you to rebuild a 2P moving part into a 3P
