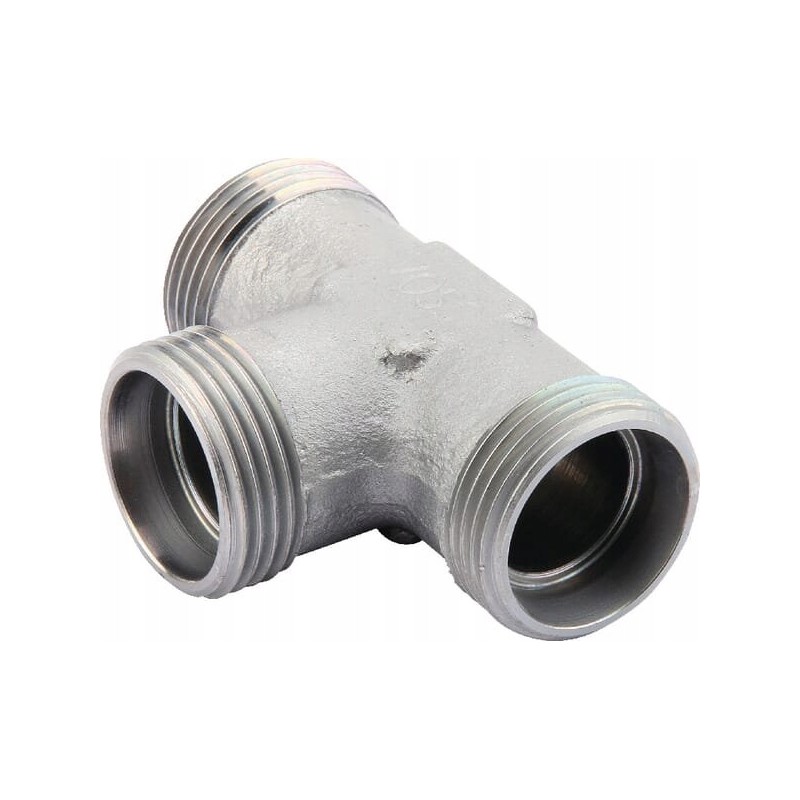

Tee connector M16x1.5 10L Parameters

Part number: TS10L

Unit: piece

Manufacturer: Voss

EAN: 8719607079143

Properties: - High corrosion resistance

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male /female: Male

Connection diameter: 10 mm

Connector thread diameter: M16

Connector No. 1 thread pitch: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 19mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connection No. 2 diameter: 10 mm

Connector No. 2 length: 15 mm

Connector No. 2 thread diameter: M16

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 19 mm

Connector No. Type 3: Thread

Connector No. 3 Type - Male/Female: Male

Connection No. 3 Diameter: 10mm

Connector No. 3 Thread Diameter: M16

Thread pitch of connector no. 3: 1.5 mm

Thread type of connector no. 3: Metric

Pipe diameter: 10 mm

Inside diameter .: 8 mm

Total length: 44 mm

Body height: 17 mm

Max working pressure: 500 BAR

Series : L

Specifications

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Steel version available on request noble

Dimension from the axis of the connector to the end of the next connector

- 15 mm

- 22 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
