Wireless radio control 2k remote control

12/24V radio control with two channels + wireless remote control SKRAW-MET CODE: [2528]Universal radio controller with wireless remote control - mainly used in hydraulics and pneumatics.

Used for remote control of 1 section in hydraulic distributors and also winches, but it can also be used in electrical systems where there is a need for remote control of up to 2 elements of the electrical system.

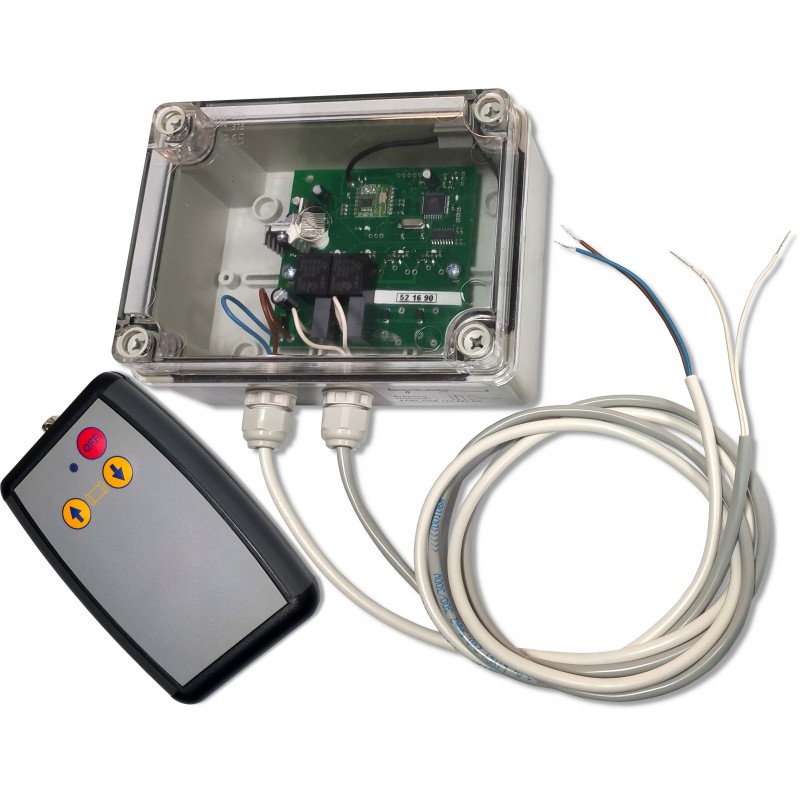

The set includes: Housing with a receiver (hermetic box)

Remote control wireless with two buttons (transmitter)

Each controller is coded during production (serial number visible on the remote control and receiver housings) so that it is compatible with only one wireless remote control included in the set.

_________________________________________________________________

The remote control is protected against unwanted, accidental presses - it is unlocked thanks to the sequence of the first two buttons from the first row:

Left arrow (<,--) and right arrow ( -->,) pressed simultaneously for three seconds, the remote control is unlocked and ready for operation. To lock it again, press the OFF button or wait about 2 minutes after the last button press. Technical specifications: Coding: unique serial number

Modulation type: FKS

Power supply: 12V - 24V DC

Operating frequency: 868.32 MHz

Number of radio channels: 3

Relay activation time: 30 ms

Relay release time: 40 ms

Box dimensions (mm): 160 x 120 x 65

Remote control dimensions ( mm): 80 x 120 x 25

Remote control power supply: 2 X 1.5V R03 (AAA)

Operating temperature: -20℃ to +60℃

Operating mode: monostable
