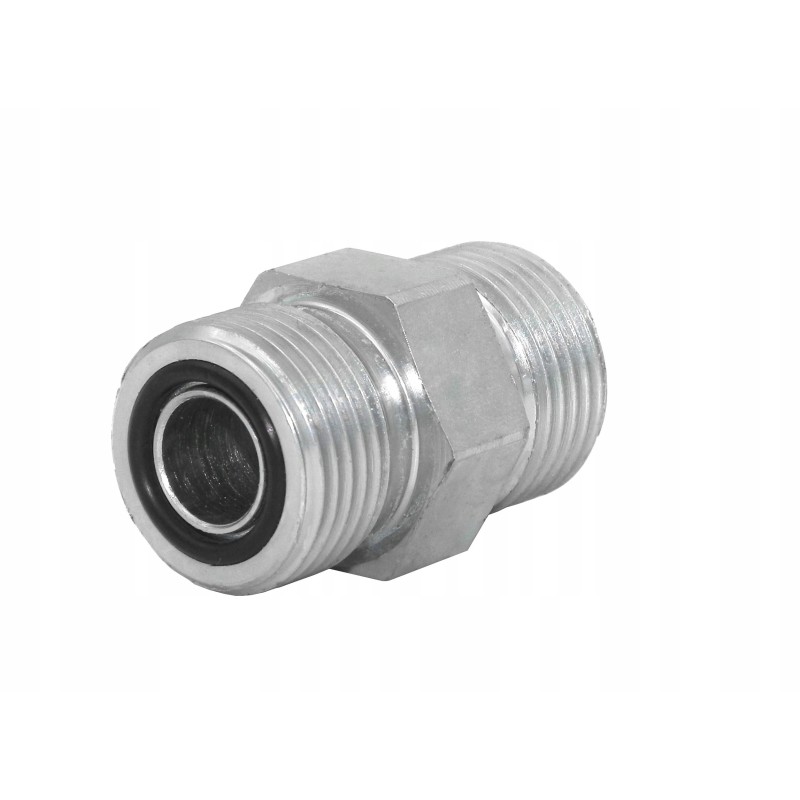

HYDRAULIC CONNECTOR ORFS 1.11/16'' COUPLING - ORFS 1.11/16'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized coupling, light version with conical clamping self-sealing at tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connections that can be purchased at our other auctions.

Technical data:

Thread on one side: external inch ORFS 1.11/16''

Thread on the other side: external inch ORFS 1.11/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
