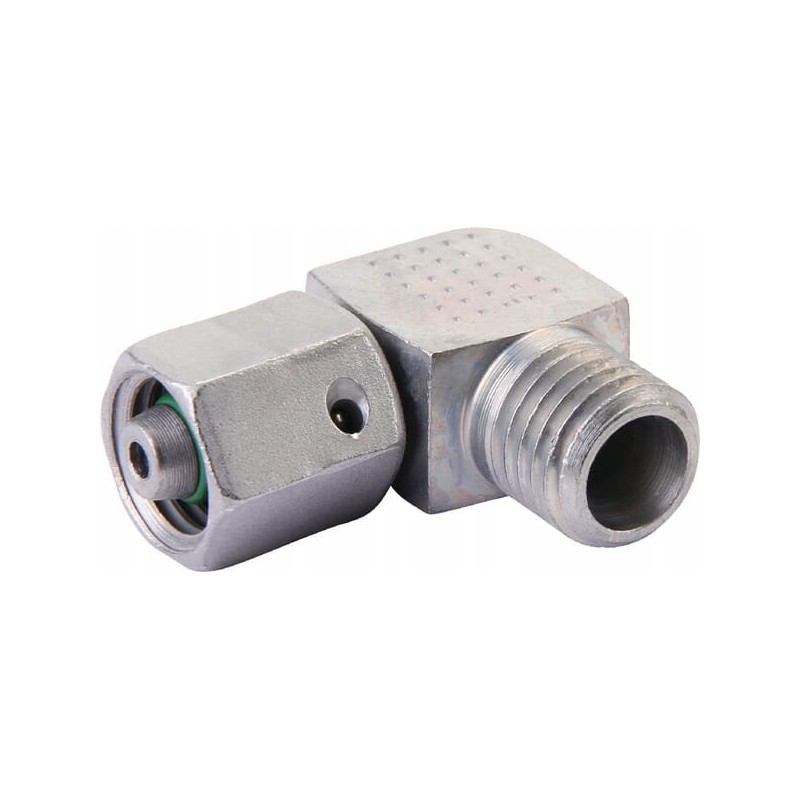

Adjustable elbow connector 6l ewsd6l voss

Adjustable elbow connector 6L Parameters

Part number: EWSD6L

Unit: piece

Manufacturer: Voss

EAN: 8716106787371

Properties: - High corrosion resistance

Shape: Elbow - 2 sides of the connection

Connector type: Swivel nut

Connector type - male/female: Female

Connection diameter: 6 mm

Connector thread diameter: M12

Connector No. 1 thread pitch: 1.5 mm

Type Connector Thread: Metric

Connector Wrench Size: 12 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male< p>

Connector No. 2 thread diameter: M12

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Wrench size for connector no. 2: 14 mm

Pipe diameter: 6 mm

DIN standard: 2401

Length: 12 mm

Angle: 90 °

Max working pressure: 500 BAR

Seal material on the pipe side: Viton

Series: L

L2: 27 mm

Mounting size 4: 12 mm

Mounting size: 12 mm

Thread M: M12x1.5 mm

Wrench opening [S2]: 14 mm

Specifications

- Pre-assembled O-ring

- For direct connection to metric hose nut or pre-assembled connector

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

- Viton gasket available on request

Dimension from the axis of the connector to the end of the next connector

26 mm

Dimension from the axis of joint no. 2 to the end of the next joint

19 mm

Internal diameter

- 4 mm

- 2.5 mm
