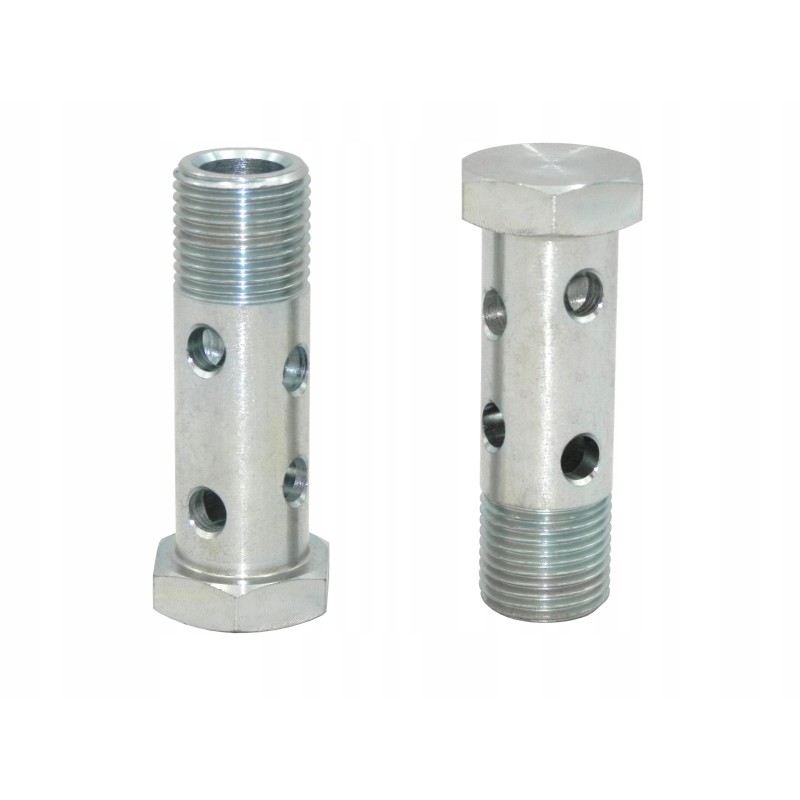

Double hydraulic screw 18x1, 5 eyelets
  • Double hydraulic screw 18x1, 5 eyelets
  • Double hydraulic screw 18x1, 5 eyelets

Double hydraulic screw 18x1, 5 eyelets

15013378362327
£13.10
Quantity
5 Items

Description
DOUBLE EYELET HYDRAULIC SCREW FI 18mm Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The eyelet connection system is used where there is a limited number of space and a crimped cable with a traditional elbow does not fit.

The screw fits connections with a ring body. Connects the pump, cylinder, distributor, etc. with hydraulic lines.

Technical data:

Thread: external metric 18x1.5

Required eyelet diameter: 18mm

Recommended thickness of the eyelet connection body: 17 - 18mm

Hexagonal head tightened with a wrench: 24

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15013378362327
SRU M18 DOUBLE
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
SRU M18 DOUBLE
